Pilz
8C000043Pilz 8C000047
PMC SI6A262R/EC 2x 25A
- MPN
- 8C000047
- EAN
- 4046548100679
- Category
- PMC SI6
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 8C000047 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

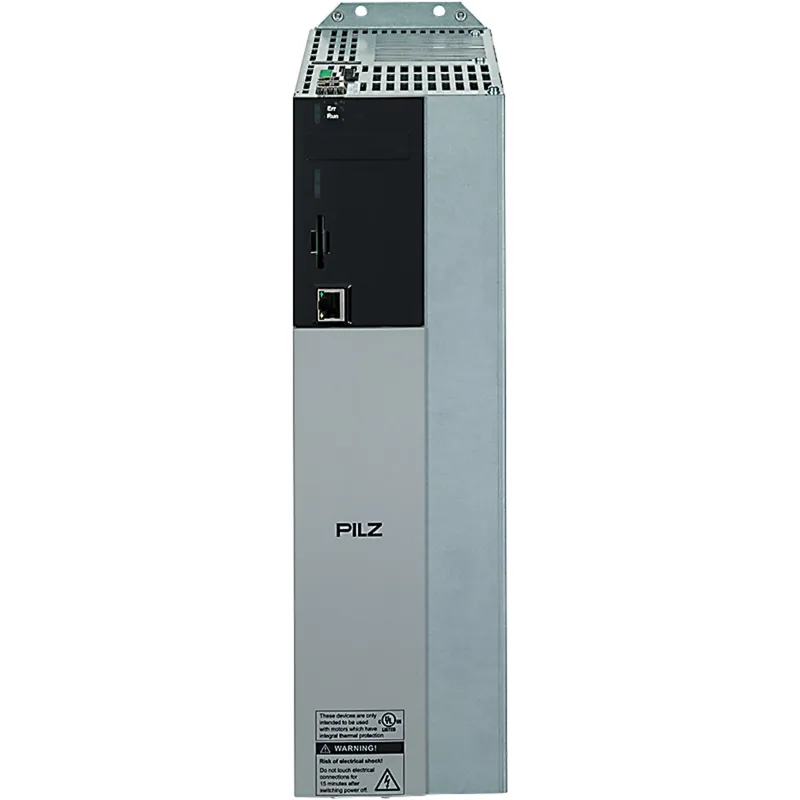

What is the Pilz 8C000047?
Multi-axis PMC SI6 drive controller Technical data at 3 x 400 V AC: Nominal output current: 2x 25 A @ 4kHz / 2x 20 A @ 8kHz. Imax: 210% for 2s / 250% for 2s. Apparent power: 2x 17.3 KVA. Without brake resistor. Option: Safety module SR6 (STO using terminals) and EtherCat.
Specifications
General data
| Product ID (Pilz order number) | 8C000047 |
| Approval | UL Listed, CE, UKCA |
| Lifecycle | End of life (Pilz is phasing this product out) |
Electrical data
| Supply voltage U2 | 24 V |
| Type of supply voltage U2 | DC |
| Rated output current (4kHz)[A] | 2 x 25 A |
| Rated output current (8kHz)[A] | 2 x 20 A |
Safety function STO
| Safety function, technology | R=SR6: STO über Klemmen |
Power section
| Max.output current (4kHz)[%/s] | 210%@2s |
| Max.output current (8kHz)[%/s] | 250%@2s |
CPU
| PMCexpansion firmware | EC = EtherCAT |
Inputs
| Number of digital inputs | 8 |
Environmental data
| Ambient temperature | 0 … 45 °C |
| Cooling type | Built-in fan |
| Protection type, housing | IP20 |
Mechanical data
| Height dimension | 343 mm |
| Width dimension | 105 mm |
| Depth dimension | 286 mm |
| Net weight | 6290 g |
| Gross weight | 7470 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27023201 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC001857 |
| UNSPSC 25 | 39121007 |
| GTIN | 4046548100679 |
| Volume | 0 dm3 |
| Harmonized System Code | 85044085 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
- Operating Manual: Operat.Man. PMC SI6/PS6
- Operat.Man. EtherCAT-PMC SC6/PMC SI6
- OP.Man. CiA 402-PMC SC6/PMC SI6
- Operat.Man. PMC Drive Based
- OP.Man. PMC Drive Based Synchronous
- OP.Man. PMC Movement commands
- Operat.Man. PMC Connection techn.
- Operating Manual: Operat.Manual PMC SR6
- OP.Man. PMC Drive Based Center Winder
- PMC System Description Motion Control
CAD & dimension drawings
Certificates (1)
8C000047: frequently asked questions
Can I still buy the 8C000047 now that it is discontinued?
Yes. Pilz has discontinued the 8C000047, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 8C000047 be shipped?
8C000047 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8C000047 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8C000047 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8C000047, subject to availability and destination.
