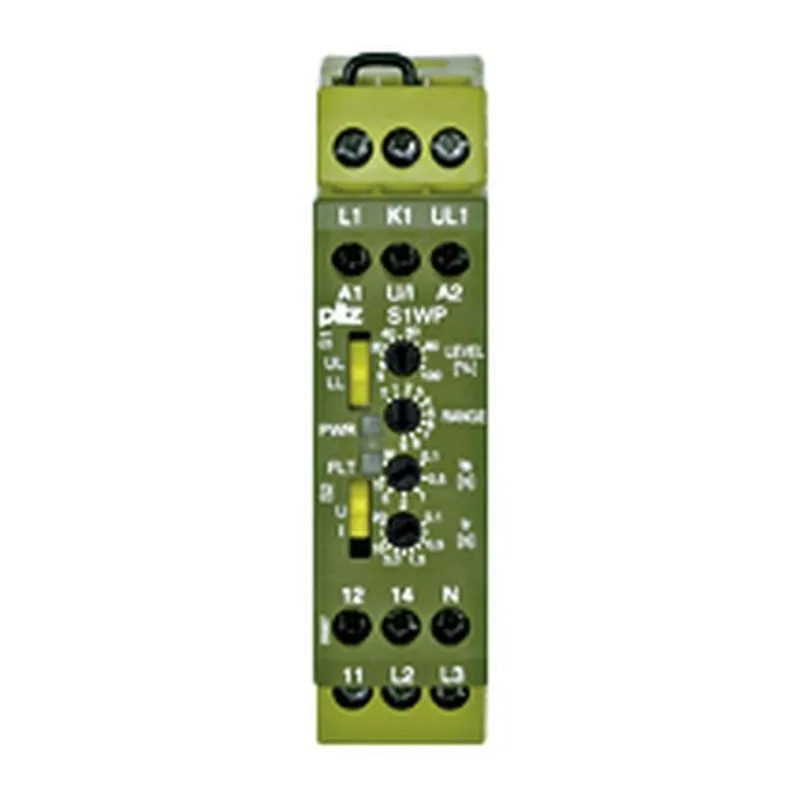

Pilz 890150

S1WP 18A 110-230VAC/DC UM 0-240VAC/DC

MPN
890150
EAN
4046548006964
Category
PMDsrange
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 890150 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 890150?

True power monitoring suitable for 1- and 3-phase supplies for frequency-controlled motors, 9 measuring ranges 0 - 1000 Hz, measuringvoltage 0 - 240 V AC/DC, 1 changeover contact, 1 analogue output 0 - 10 V DC or 4 -20 mA, width = 22.5 mm, UB = 110 - 230 V AC/DC.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)890150
ApprovalCE, CCC, UKCA, cULus Listed
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)230 V
Type of supply voltage U1AC
Power consumption AC5 VA
Max. device circuit breakerMax. conductor cross section

Measuring circuit

U meas. range analogue input0 … 240 V
I meas. range analogue input18 A
Freq. meas. range analog i/p0 - 1000 Hz

Output signals during generator operation

Uout during generator mode0 - -10 V

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Safety contacts: AC at UL250 V AC
Relay contact materialAgCdO
Addit. contact details relay+ 3.0 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature0 … 55 °C
Condensation permitted?Not permitted
EMC to standard ...EN 61000-6-2, EN 61000-6-4
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight140 g
Gross weight150 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1
CAS No.7439-92-1, 1317-36-8
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27210127
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC002479
UNSPSC 2539122205
GTIN4046548006964
Volume0.284 dm3
Harmonized System Code90303370

890150: frequently asked questions

Can I still buy the 890150 now that it is discontinued?

Yes. Pilz has discontinued the 890150, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 890150 be shipped?

890150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 890150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 890150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 890150, subject to availability and destination.
