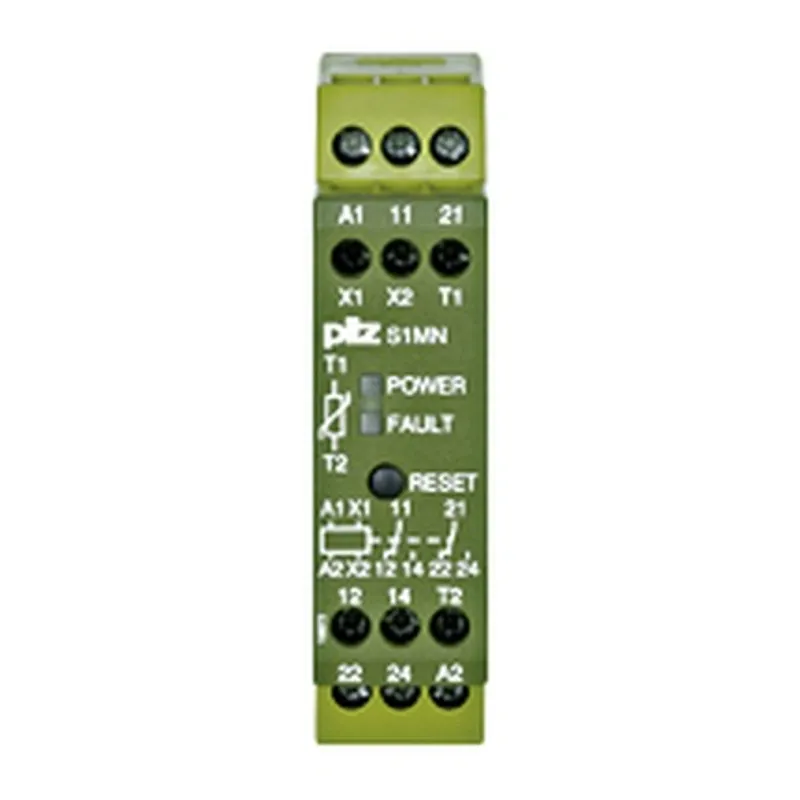

Pilz 840405

S1MN 48VAC 2c/o

MPN
840405
EAN
4046548078176
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 840405 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 840405?

Thermistor monitoring relay, as a protection device from overheating of motors, generators, etc., 2 auxiliary contacts, 2 changeover contacts,width = 22.5 mm, UB = 48 V AC.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)840405
ApprovalCE, CCC, UKCA, cULus Listed
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)48 V
Type of supply voltage U1AC
Power consumption AC3.5 VA
Max. device circuit breakerMax. conductor cross section

Measuring circuit

Response value Ran3.6 kOhm, ±10 %
Release value Rab1.8 kOhm, ±10 %
Max.cold resistance Rc at 20°C1.5 kOhm

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Relay contact materialAgCdO
Addit. contact details relay+ 3.0 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight160 g
Gross weight170 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371810
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC001446
UNSPSC 2539122229
GTIN4046548078176
Volume0.255 dm3
Harmonized System Code85364900

840405: frequently asked questions

Can I still buy the 840405 now that it is discontinued?

Yes. Pilz has discontinued the 840405, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 840405 be shipped?

840405 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 840405 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 840405 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 840405, subject to availability and destination.

More Pilz parts

Pilz 837350 – S3UM 230VAC UM 100/110VAC
Pilz
837350

S3UM 230VAC UM 100/110VAC

Pilz 837380 – S3UM 230VAC UM 415/460VAC
Pilz
837380

S3UM 230VAC UM 415/460VAC

Pilz 838000 – S1UK 24VACDC 120/240VAC UM 1VAC/DC
Pilz
838000

S1UK 24VACDC 120/240VAC UM 1VAC/DC

Pilz 840400 – S1MN 24VAC/DC 2c/o
Pilz
840400

S1MN 24VAC/DC 2c/o

Pilz 840410 – S1MN 110VAC 2c/o
Pilz
840410

S1MN 110VAC 2c/o

Pilz 840415 – S1MN 230VAC 2c/o
Pilz
840415

S1MN 230VAC 2c/o

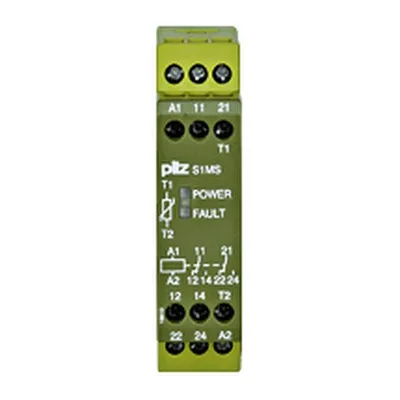

Pilz 840740 – S1MS 110VAC 2c/o
