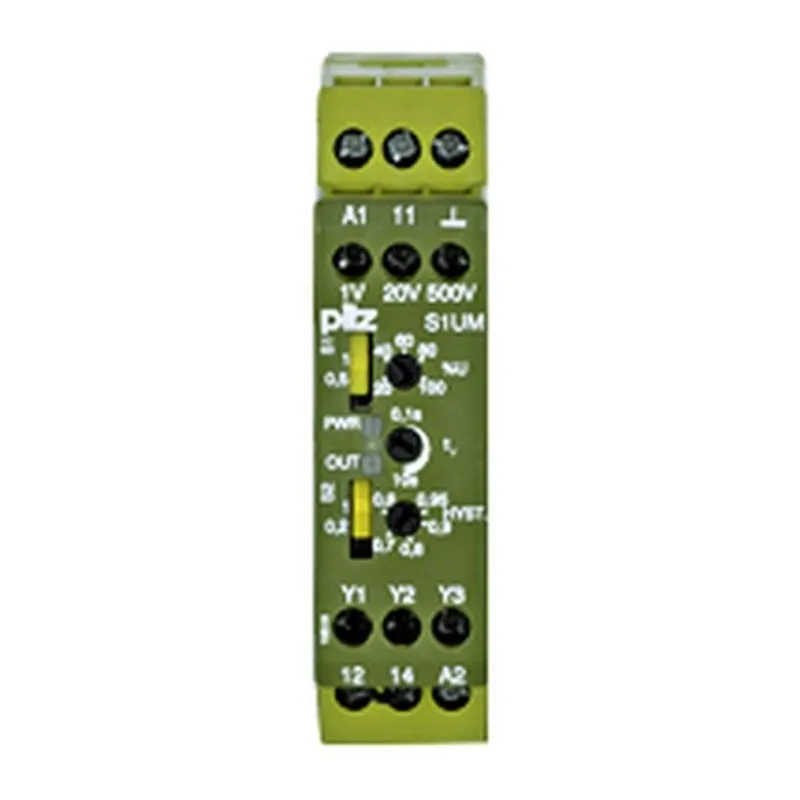

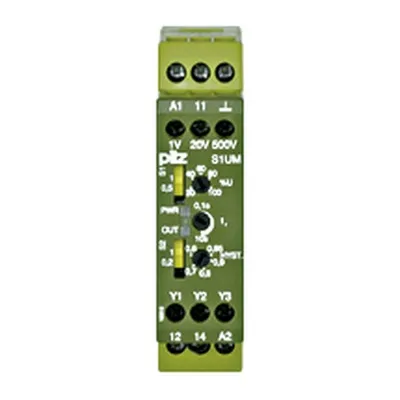

Pilz 827235 – S1UM 24VAC UM 0.1-500VAC/DC UP

MPN: 827235 · Brand: Pilz

Price on request

Discontinued by Pilz — we can still source the original 827235 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PMDsrange
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.16 kg
UPC / EAN	4046548007664

Shipping & availability

Can I still buy the 827235 now that it is discontinued?

Yes. Pilz has discontinued the 827235, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 827235 be shipped?

827235 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 827235 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 827235 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 827235, subject to availability and destination.

Voltage monitoring relay, to monitor min. and max. voltage values, 12 measuring ranges 0.1 - 500 V AC/DC selectable, 0.40 -400 Hz, width = 22.5 mm, UB = 24 V AC, measuring inputs are notpolarity-sensitive.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)	827235
Approval	CE, CCC, UKCA, cULus Listed
Lifecycle	Discontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	AC
Power consumption AC	2 VA
Max. device circuit breaker	Max. conductor cross section

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Safety contacts: AC at UL	240 VAC Res. NO Side Only
Safety contacts: pilot duty	B300, R300
Relay contact material	AgCdO
Addit. contact details relay	+ 3.0 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-15 … 55 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material lower section	PPO UL 94 V0
Housing material front plate	ABS UL 94 V0
Housing material upper part	PPO UL 94 V0
Connection terminal	Screw terminal
Terminal style	fixed
Flex. cond. c/s AWG info	24 - 10 AWG
Height dimension	87 mm
Width dimension	22.5 mm
Depth dimension	121 mm
Net weight	160 g
Gross weight	170 g

Environment

REACh compliance	contains min. 1 SVHC-substance
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371801
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001438
UNSPSC 25	39122205
GTIN	4046548007664
Volume	0.284 dm3
Harmonized System Code	85364900

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Safety-related data S-Range	PDF · 0.1 MB
Check list: Electronic monitoring relays	PDF · 8.9 MB
Data Sheets: Datenblatt S1UM	PDF · 0.3 MB
Operating Manual S1UM UP	PDF · 0.8 MB
Operating Manual S1UM UP	PDF · 0.5 MB

CAD & dimension drawings

CAD 2D drawing (DXF Autodesk Drawing Interchange Format)	ZIP
CAD 2D drawing (Portable Document Format (Adobe Acrobat))	PDF
CAD 3D model (IGES - Initial Graphics Exchange Spec.)	ZIP · 0.1 MB
CAD 3D model (STEP - Product Model Data)	ZIP
Electrical CAD Data: EPLAN P8 Macro	EDZ

Certificates (4)

Certificate (UL) NRNT.E153882	PDF
Certificate (CQC) 2024010303682023	PDF · 3.2 MB
Certificate (UL) NRNT7.E153882	PDF
Certificate (CQC) 2024010303682009	PDF · 4.6 MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
