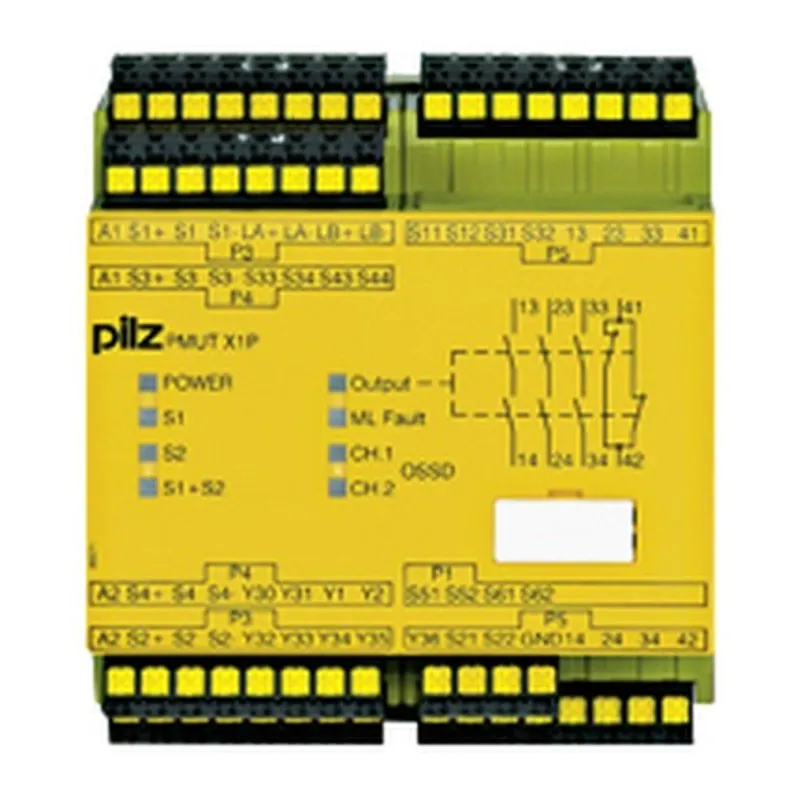

Pilz 788010

PMUT X1P C 24VDC 3n/o 1n/c 5so

MPN
788010
EAN
4046548007909
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 788010 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 788010?

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, 4 muting sensors,outputs: 3 N/O, 1 N/C, 5 SC, automatic/monitored start, UB = 24 V DC, width: 90 mm, plug-in spring-loaded terminals, device for brief suspension of safety functions, muting, monitoring of muting lamps and their automatic switching.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)788010
ApprovalCCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC33 W

Inputs

Number of inputs9

Semiconductor outputs

Number of semicond. outputs4
Tolerance ext. volt. DC S/C-20 %/+20 %
Utilisation cat. to EN 60947-1DC-12

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.8 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.8 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.240 V
Max. current AC15 safety cont.5 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyB300, R300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 61496-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material front plateABS UL 94 V0
Connection terminalSpring-loaded terminal
Terminal styleplug-in
Height dimension101 mm
Width dimension90 mm
Depth dimension121 mm
Net weight565 g
Gross weight575 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead
%-part of the pollutant> 0,1
CAS No.7439-92-1
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371819
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC001449
UNSPSC 2539122331
GTIN4046548007909
Volume1.140 dm3
Harmonized System Code85364900

788010: frequently asked questions

Can I still buy the 788010 now that it is discontinued?

Yes. Pilz has discontinued the 788010, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 788010 be shipped?

788010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 788010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 788010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 788010, subject to availability and destination.

More Pilz parts

Pilz 787770 – PNOZ X8P C 24VAC 3n/o 2n/c 2so
Pilz
787770

PNOZ X8P C 24VAC 3n/o 2n/c 2so

Pilz 787949 – PSWZ X1P C 0,5V/24-240VACDC 2n/o 1n/c2so
Pilz
787949

PSWZ X1P C 0,5V/24-240VACDC 2n/o 1n/c2so

Pilz 787950 – PSWZ X1P C 3V/24-240VACDC 2n/o 1n/c2so
Pilz
787950

PSWZ X1P C 3V/24-240VACDC 2n/o 1n/c2so

Pilz 787951 – PSWZ X1P C 0,0075-0,5V/24-240VACDC
Pilz
787951

PSWZ X1P C 0,0075-0,5V/24-240VACDC

Pilz 793100 – PNOZ m1p/m0p plug in screw terminals
Pilz
793100

PNOZ m1p/m0p plug in screw terminals

Pilz 793300 – PNOZ p1p Set plug in screw terminals
Pilz
793300

PNOZ p1p Set plug in screw terminals

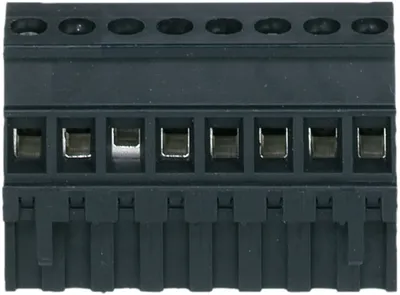

Pilz 793305 – PNOZ p1p inverse Set plug in screw term.
