Pilz 787540

PNOZ XV2.1P C 30/24-240VACDC 2n/o 2n/o t

MPN
787540
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 787540 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 787540?

Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 N/O, 2 N/O (t = 0 - 30 s). Automatic/monitored start UB 24 - 240 V AC/DC, width: 90 mm, plug-in spring-loaded terminals. Monitoring E-STOP, safety gates.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)787540
ApprovalCCC, CE, cULus Listed, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)24 … 240 V
Type of supply voltage U1AC/DC
Power consumption AC8.5 VA
Power consumption DC5 W

Inputs

Number of inputs2

Semiconductor outputs

Number of semicond. outputs0

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.8 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.8 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.5 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyR300, C300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Times

Selectable times6, s, 20, 30, 4, 15, 25, 0.1, 1, 0.5, 2, 10, 8
Tolerance Tv-15 %/+15 % +50 ms
Repetition accuracy2 %

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalSpring-loaded terminal
Terminal styleplug-in
Height dimension101 mm
Width dimension90 mm
Depth dimension121 mm
Net weight515 g
Gross weight525 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

787540: frequently asked questions

Can I still buy the 787540 now that it is discontinued?

Yes. Pilz has discontinued the 787540, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 787540 be shipped?

787540 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 787540 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 787540 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 787540, subject to availability and destination.

More Pilz parts

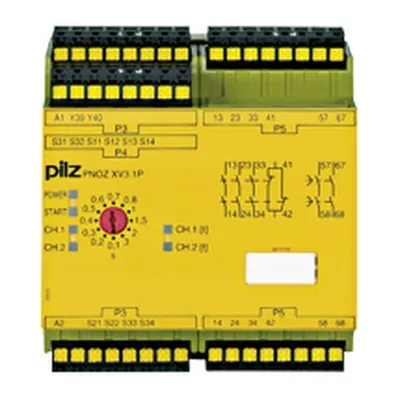

Pilz 787522 – PNOZ XV3.1P C 3/24VDC 3n/o 1n/c 2n/o t
Pilz
787522

PNOZ XV3.1P C 3/24VDC 3n/o 1n/c 2n/o t

Pilz 787530 – PNOZ XV3.1P C 30/24-240VACDC 3no 1nc 2no
Pilz
787530

PNOZ XV3.1P C 30/24-240VACDC 3no 1nc 2no

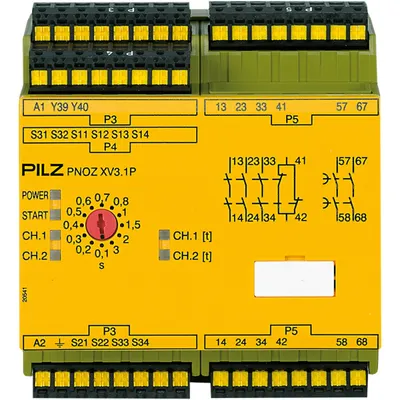

Pilz 787532 – PNOZ XV3.1P C 3/24-240VACDC 3no 1nc 2no
Pilz
787532

PNOZ XV3.1P C 3/24-240VACDC 3no 1nc 2no

Pilz 787538 – PNOZ XV3.1P C300/24-240VACDC 3no 1nc 2no
Pilz
787538

PNOZ XV3.1P C300/24-240VACDC 3no 1nc 2no

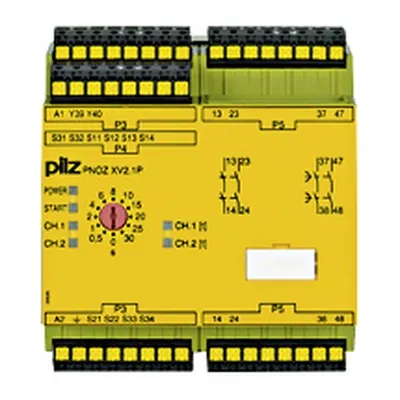

Pilz 787542 – PNOZ XV2.1P C 3/24-240VACDC 2n/o 2n/o t
Pilz
787542

PNOZ XV2.1P C 3/24-240VACDC 2n/o 2n/o t

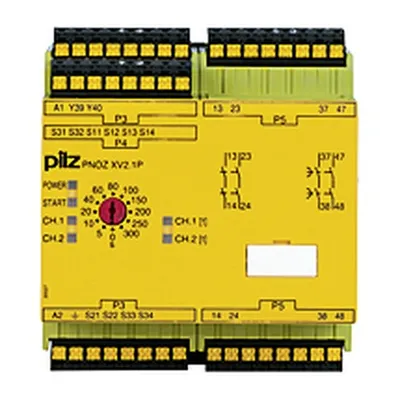

Pilz 787548 – PNOZ XV2.1P C 300/24-240VACDC 2n/o 2n/o
