Pilz 784181

Q: When can 784181 be shipped?

784181 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 784181 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 784181 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 784181, subject to availability and destination.

PNOZ e4vp C 10/24VDC 1so 1so t

MPN: 784181
EAN: 4046548008821
Category: Pressure sensitive mats monitoring

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 784181?

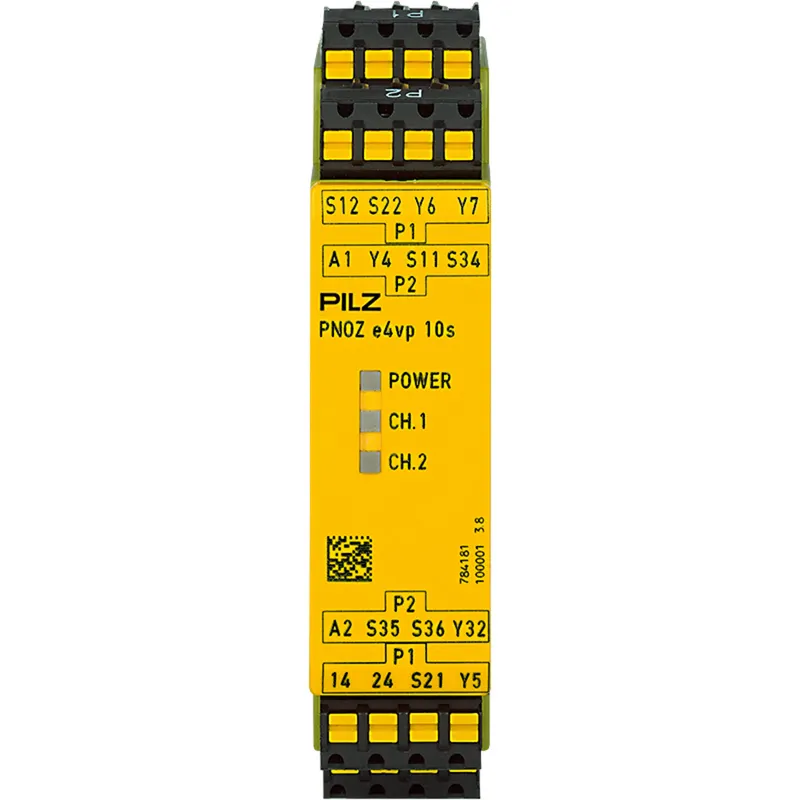

Safety relay (standalone), inputs: 2-channel wiring with detection of shorts across contacts, outputs: 2 safety outputs + 1 auxiliary output of SC type, delayed, automatic/monitored start, UB = 24 V DC, width: 22.5 mm, plug-in spring-loaded terminals,connection between several devices, pressure sensitive mat terminals.

Specifications

General data

Product ID (Pilz order number)	784181
Approval	CE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Max. device circuit breaker	6 A slow / 10 A quick

Inputs

Safety mat resistance

150 Ohm

Semiconductor outputs

Utilisation cat. to EN 60947-1

DC-12

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 … 55 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61326-3-1, EN 61000-6-4
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Times

Selectable times	7, s, 3, 5, 0.15, 1, 0, 10, 2, 0.5
Tolerance Tv	+/-10 % + 40 ms
Repetition accuracy	5 %

Mechanical data

Mounting position	any
Housing material front plate	ABS UL 94 V0
Connection terminal	Spring-loaded terminal
Terminal style	plug-in
Height dimension	101 mm
Width dimension	22.5 mm
Depth dimension	121 mm
Net weight	125 g
Gross weight	145 g

Environment

REACh compliance	contains min. 1 SVHC-substance
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548008821
Volume	0.300 dm3
Harmonized System Code	85365019
Quantity per packaging unit	1
