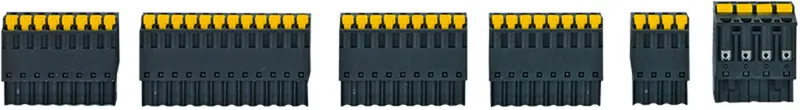

Pilz 783100 – PNOZ m1p Set spring loaded terminals
Discontinued by Pilz — we can still source the original 783100 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PNOZmulti - base units |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.037 kg |
| UPC / EAN | 4046548009002 |
Shipping & availability
Can I still buy the 783100 now that it is discontinued?
Yes. Pilz has discontinued the 783100, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 783100 be shipped?
783100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 783100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 783100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 783100, subject to availability and destination.
1 set of spring-loaded terminals for PNOZmulti Classic base units.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 783100 |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Mechanical data
| Net weight | 37 g |
| Gross weight | 40 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242292 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC002584 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548009002 |
| Volume | 0.095 dm3 |
| Harmonized System Code | 85369010 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
CAD & dimension drawings
| Electrical CAD Data: EPLAN P8 Macro | EDZ |
Certificates (1)
| Self Declaration (CQC) CCC_Declaration-of-exemption | PDF · 0.5 MB |
More Pilz parts
Available on requestPNOZmulti Chipcard Holder (Sparepart)
Available on requestPNOZ mm0.xp connector left (10 pcs)
Available on requestPNOZ mm0.xp terminator left (10 pcs.)

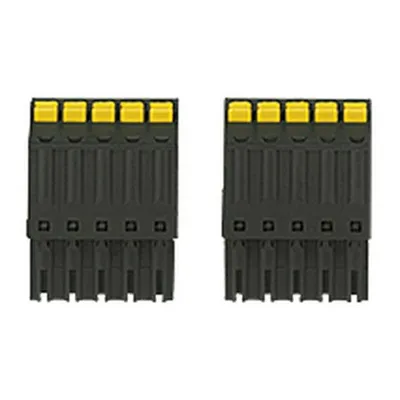

Available on requestPNOZmulti Set spring loaded terminals
