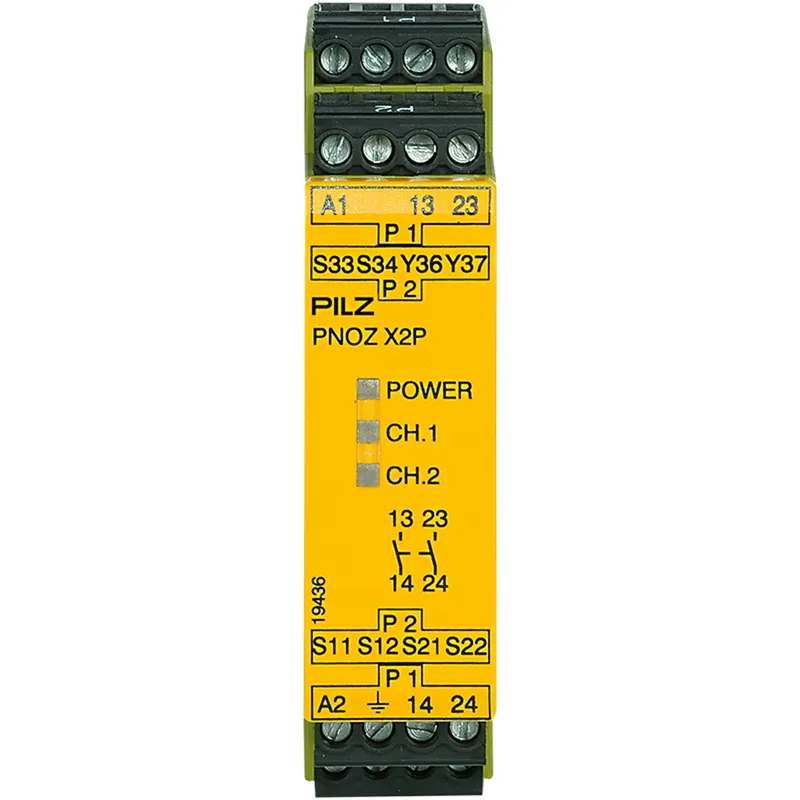

Pilz 777307

Q: When can 777307 be shipped?

777307 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 777307 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 777307 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 777307, subject to availability and destination.

PNOZ X2P 48-240VACDC 2n/o

MPN: 777307
EAN: 4046548009835
Category: Monitoring of E-STOP, safety gates, light barriers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 777307?

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 N/O,automatic/monitored start, UB = 48 - 240 V AC/DC, width: 22.5 mm, plug-in terminals of screw type, monitoring of E-STOP, safety gates, feedback loop.

Specifications

General data

Product ID (Pilz order number)	777307
Approval	CE, CCC, UKCA, cULus Listed, EAC (Eurasian), TÜV
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	48 … 240 V
Type of supply voltage U1	AC/DC
Power consumption AC	3.5 VA
Power consumption DC	1 W

Inputs

Number of inputs

Semiconductor outputs

Number of semicond. outputs

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	6 A
Voltage DC1 safety cont.	24 V
Max. current DC1 safety cont.	6 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	5 A
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G. P.
Safety contacts: pilot duty	B300, R300
Relay contact material	AgSnO2
Addit. contact details relay	+ 0.2 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 … 55 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material front plate	ABS UL 94 V0
Connection terminal	Screw terminal
Terminal style	plug-in
Flex. cond. c/s AWG info	24 - 12 AWG
Height dimension	94 mm
Width dimension	22.5 mm
Depth dimension	121 mm
Net weight	200 g
Gross weight	210 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	no
REACh compliance	Contains no SVHC substances
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548009835
Volume	0.301 dm3
Harmonized System Code	85364900
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (9)
