Pilz 777076

Q: When can 777076 be shipped?

777076 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 777076 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 777076 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 777076, subject to availability and destination.

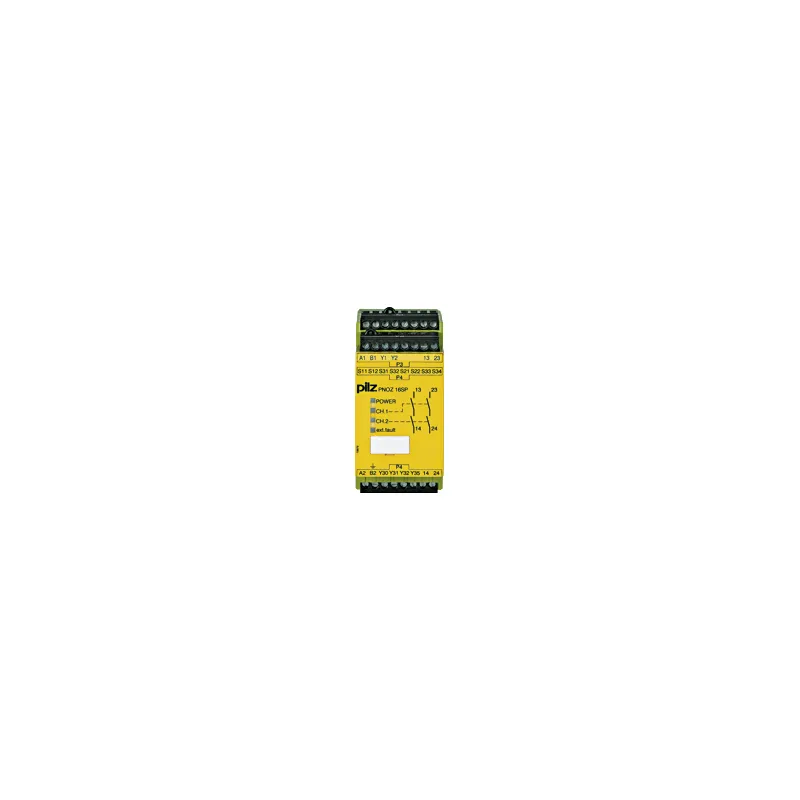

PNOZ 16SP 230VAC 24VDC 2n/o

MPN: 777076
EAN: 4046548010053
Category: Pressure sensitive mats monitoring

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 777076?

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 N/O, 2 SC, automatic/manual start, UB = 230 V AC/24 V DC, width: 45 mm, plug-in terminals of screw type, monitoring of E-STOP, safety gates, feedback loop.

Specifications

General data

Product ID (Pilz order number)	777076
Approval	CE, CCC, UKCA, cULus Listed, EAC (Eurasian), TÜV
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	230 V
Type of supply voltage U1	AC
Power consumption AC	3.5 VA
Supply voltage U2	24 V
Type of supply voltage U2	DC

Inputs

Number of inputs	2
Safety mat resistance	80 Ohm

Semiconductor outputs

Number of semicond. outputs	2
Tolerance ext. volt. DC S/C	-15 %/+10 %
Utilisation cat. to EN 60947-1	DC-12

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	8 A
Voltage DC1 safety cont.	24 V
Max. current DC1 safety cont.	8 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	5 A
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G. P.
Safety contacts: pilot duty	C300, R300
Relay contact material	AgSnO2
Addit. contact details relay	+ 0.2 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material front plate	ABS UL 94 V0
Connection terminal	Screw terminal
Terminal style	plug-in
Flex. cond. c/s AWG info	24 - 12 AWG
Height dimension	94 mm
Width dimension	45 mm
Depth dimension	121 mm
Net weight	335 g
Gross weight	345 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead
%-part of the pollutant	> 0,1
CAS No.	7439-92-1
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548010053
Volume	0.575 dm3
Harmonized System Code	85364900
Quantity per packaging unit	1
