Pilz 775620

PNOZ 1 48VAC 3n/o 1n/c

MPN
775620
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 775620 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 775620?

Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 3 N/O, 1 N/C UB 48 V AC, width: 90 mm, integral screw terminals, Monitoring E-STOP, safety gates.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)775620
ApprovalCCC, CE, cULus Listed, TÜV, EAC (Eurasian)
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)48 V
Type of supply voltage U1AC
Power consumption AC5.5 VA

Inputs

Number of inputs2

Semiconductor outputs

Number of semicond. outputs0

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.8 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.8 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.5 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyB300, R300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material front plateABS UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension90 mm
Depth dimension121 mm
Net weight500 g
Gross weight510 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

775620: frequently asked questions

Can I still buy the 775620 now that it is discontinued?

Yes. Pilz has discontinued the 775620, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 775620 be shipped?

775620 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 775620 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 775620 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 775620, subject to availability and destination.

More Pilz parts

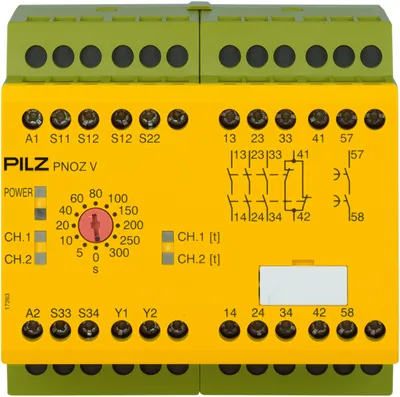

Pilz 774791 – PNOZ V 300s 24VDC 3n/o 1n/c 1n/o t
Pilz
774791

PNOZ V 300s 24VDC 3n/o 1n/c 1n/o t

Pilz 775505 – PU3Z 120-240VAC 3n/o 1n/c 6so
Pilz
775505

PU3Z 120-240VAC 3n/o 1n/c 6so

Pilz 775510 – PU3Z 24VAC/DC 3n/o 1n/c 6so
Pilz
775510

PU3Z 24VAC/DC 3n/o 1n/c 6so

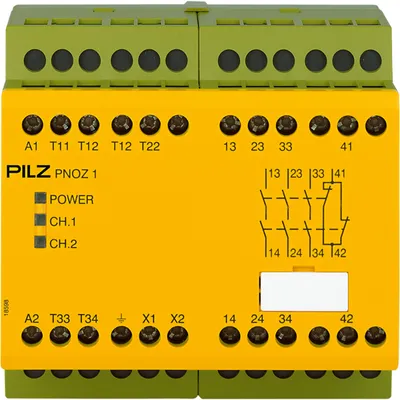

Pilz 775600 – PNOZ 1 24VAC 3n/o 1n/c
Pilz
775600

PNOZ 1 24VAC 3n/o 1n/c

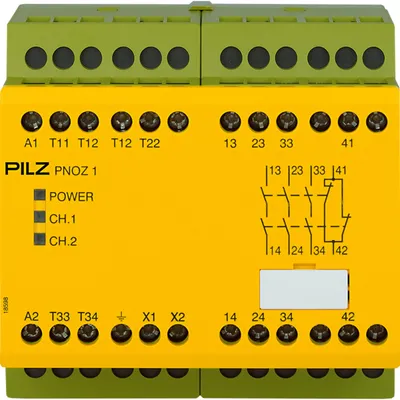

Pilz 775630 – PNOZ 1 110-120VAC 3n/o 1n/c
Pilz
775630

PNOZ 1 110-120VAC 3n/o 1n/c

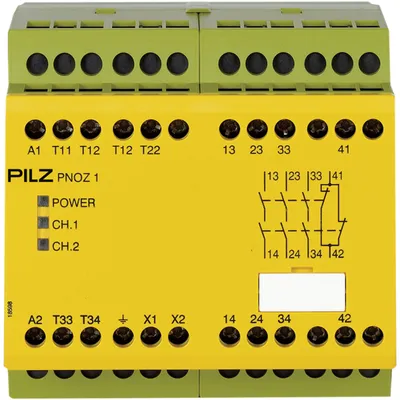

Pilz 775650 – PNOZ 1 230-240VAC 3n/o 1n/c
