Pilz 774560 – PNOZ XHCV 0,7/24VDC 2n/o fix
Discontinued by Pilz — we can still source the original 774560 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Monitoring of E-STOP, safety gates, light barriers |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.68 kg |
Shipping & availability
Can I still buy the 774560 now that it is discontinued?
Yes. Pilz has discontinued the 774560, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 774560 be shipped?
774560 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 774560 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 774560 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774560, subject to availability and destination.
Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 N/O delayed UB 24 V DC, width: 90 mm, integral screw terminals, Monitoring E-STOP, safety gates with 2 delay-on de-energisation contacts. Release time 0.7 s fixed.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 774560 |
| Approval | CCC, CE, TÜV, EAC (Eurasian) |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Power consumption DC | 5.5 W |
Inputs
| Number of inputs | 2 |
Semiconductor outputs
| Number of semicond. outputs | 0 |
Relay outputs
| Utilisation cat. AC/DC1 stand. | EN 60947-4-1 |
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Relay contact material | AgNi10 |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | -10 … 55 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 60947-5-1, EN 61000-6-2, EN 61326-3-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III / II |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP40 |
Times
| Tolerance Tv | -43 %/+43 % |
Mechanical data
| Mounting position | any |
| Housing material lower section | PPO UL 94 V0 |
| Housing material front plate | ABS UL 94 V0 |
| Housing material upper part | PPO UL 94 V0 |
| Connection terminal | Screw terminal |
| Terminal style | fixed |
| Flex. cond. c/s AWG info | 24 - 10 AWG |
| Height dimension | 87 mm |
| Width dimension | 112.5 mm |
| Depth dimension | 121 mm |
| Net weight | 680 g |
| Gross weight | 690 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Operating Manual PNOZ XHCV | PDF · 0.9 MB |
| Operating Manual PNOZ XHCV | PDF · 0.8 MB |
CAD & dimension drawings
| Electrical CAD Data: EPLAN P8 Macro | EDZ |
Certificates (7)
| Type examination certificate (TÜV) UK-MAC000151-i01 | PDF · 0.9 MB |
| Certificate (EAC) RU-C-DE-HB-B-03002-23 | PDF · 1.2 MB |
| Type examination certificate (TÜV) M6R-020132-0314-R00 | PDF · 1.8 MB |
| Certificate (CQC) 2024010305681904 | PDF · 2.3 MB |
| Certificate (CQC) 2024010303682025 | PDF · 2.3 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 0.3 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.2 MB |
More Pilz parts
Available on requestPNOZ XV2.1 30/24-240VACDC 2n/o 2n/o t
Available on requestPNOZ XV2.1 3/24-240VACDC 2n/o 2n/o t
Available on requestPNOZ XV2.1 0.5/24-240VACDC 2n/o 2n/o fix

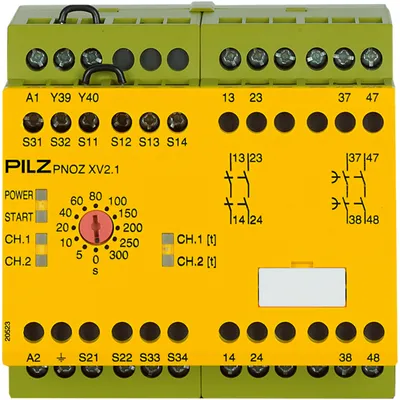

Available on requestPNOZ XV2.1 300/24-240VACDC 2n/o 2n/o t
