Pilz 774400

PDZ 24VDC 2n/o 2n/c

MPN
774400
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 774400 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 774400?

Safety relay (standalone) Inputs: 2-channel wiring by 2 PNP switching initiators or 1 incremental encoder/resolver. Outputs: 2 N/O, 2 N/C UB 24 V DC, width: 90 mm Combined speed and standstill monitoring device.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)774400
ApprovalCCC, CE, cULus Listed, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)24
Type of supply voltage U1DC
Power consumption DC10
Max. device circuit breakerP_GERAETEABSICH_MAX_Max-Leiterquerschnitt

Inputs

Number of inputs2

Reset input

Semiconductor inputs9

Relay outputs

Utilisation cat. AC/DC1 stand.P_SCHALTVERMOEGEN_NACH_EN 60947-4-1
Voltage AC1 safety cont.240
Max. current AC1 safety cont.5
Voltage DC1 safety cont.24
Max. current DC1 safety cont.5
Utilisation cat. AC15/DC13sta.P_SCHALTVERMOEGEN_13_NACH_EN 60947-5-1
Voltage AC15 safety cont.230
Max. current AC15 safety cont.5
Voltage DC13 safety cont.24
Relay contact materialP_KONT_MAT_AgSnO2

Environmental data

Climatic suitability to ...P_KLIMA_EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity ratingP_FEUCHTE_WERT_93 % r. F. bei 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61000-6-4
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII
Pollution degree clear.&creep.2
Protection type, housingIP40

Times

Reaction time over limit valueP_VERZ_GRENZWERT_1/f_ist + 16 ms

Mechanical data

Mounting positionany
Housing material lower sectionP_GEHAEUSE_MAT_U_PPO UL 94 V0
Housing material front plateP_GEHAEUSE_MAT_F_ABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG infoP_QUER_1L_AWG_24 - 10 AWG
Height dimension87 mm
Width dimension90 mm
Depth dimension121 mm
Net weight461 g
Gross weight492 g

774400: frequently asked questions

Can I still buy the 774400 now that it is discontinued?

Yes. Pilz has discontinued the 774400, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 774400 be shipped?

774400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 774400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 774400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774400, subject to availability and destination.

More Pilz parts

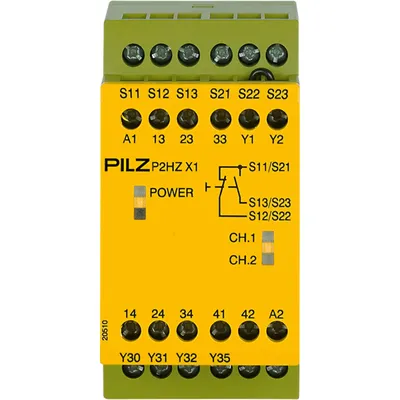

Pilz 774332 – P2HZ X1 48VAC 3n/o 1n/c
