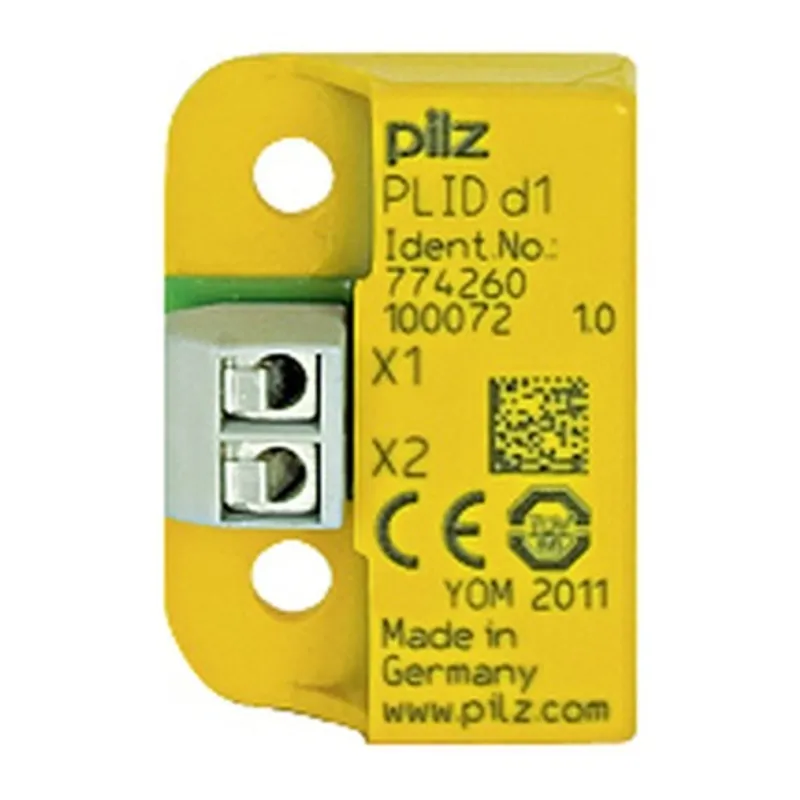

Pilz 774260
PLID d1
- MPN
- 774260
- EAN
- 4046548067101
- Category
- PLID D1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 774260?
PNOZ, accessories, safe line inspection of a 2-wire line for short circuit, short across contacts and open circuit, test pulse signalinput for evaluation device PNOZ e8.1p, manual test with 1N/O contact, continuous test with 1N/C, maximum cable length 3000 m, version with screw terminal.
Specifications
General data
| Product ID (Pilz order number) | 774260 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Source of internal voltage | Via evaluation device |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | -30 … 70 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 60947-5-1, EN 61000-6-2, EN 61000-6-4 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP40 |
Mechanical data
| Mounting position | any |
| Max. cable length | 3000 m |
| Housing material lower section | PC |
| Connection terminal | Screw terminal |
| Terminal style | fixed |
| Flex. cond. c/s AWG info | 22 - 14 AWG |
| Height dimension | 36 mm |
| Width dimension | 26 mm |
| Depth dimension | 12.1 mm |
| Net weight | 10 g |
| Gross weight | 29 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 1317-36-8 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27141990 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC002586 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548067101 |
| Volume | 0.276 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
