Pilz 774058

PNOZ X7 42VAC 2n/o

MPN
774058
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 774058 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 774058?

Safety relay (standalone) Inputs: Single-channel wiring Outputs: 2 N/O. Automatic/manual start UB 42 V AC, width: 22.5 mm, integral screw terminals, Monitoring E-STOP, safety gates.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)774058
ApprovalCE, CCC, cULus Listed, KOSHA, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)42 V
Type of supply voltage U1AC
Power consumption AC2 VA

Inputs

Number of inputs1

Semiconductor outputs

Number of semicond. outputs0

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.4 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.4 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.4 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyC300, R300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material front plateABS UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight225 g
Gross weight235 g

Environment

WEEE classification (08/2018)5 devices (feed size < 50cm)

774058: frequently asked questions

Can I still buy the 774058 now that it is discontinued?

Yes. Pilz has discontinued the 774058, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 774058 be shipped?

774058 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 774058 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 774058 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774058, subject to availability and destination.

More Pilz parts

Pilz 774054 – PNOZ X7 115VAC 2n/o
Pilz
774054

PNOZ X7 115VAC 2n/o

Pilz 774055 – PNOZ X7 120VAC 2n/o
Pilz
774055

PNOZ X7 120VAC 2n/o

Pilz 774056 – PNOZ X7 230VAC 2n/o
Pilz
774056

PNOZ X7 230VAC 2n/o

Pilz 774057 – PNOZ X7 240VAC 2n/o
Pilz
774057

PNOZ X7 240VAC 2n/o

Pilz 774059 – PNOZ X7 24VACDC 2n/o
Pilz
774059

PNOZ X7 24VACDC 2n/o

Pilz 774060 – PNOZ 16 24VAC 24VDC 2n/o
Pilz
774060

PNOZ 16 24VAC 24VDC 2n/o

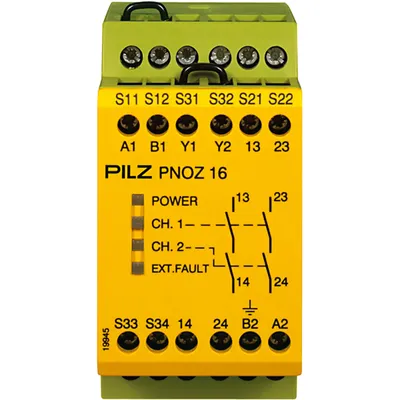

Pilz 774061 – PNOZ 16 42VAC 24VDC 2n/o
