Pilz 774048

PZW 3/230VAC 1n/o 2n/c

MPN
774048
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 774048 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 774048?

Safety relay (standalone) Inputs: Single-channel wiring Outputs: 1 N/O, 2 N/C UB 230 V AC, width: 45 mm, integral screw terminals Pulse timer, pulse times 12 stages from 0 - 3 s.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)774048
ApprovalCE, cULus Listed, TÜV, EAC (Eurasian)
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)230 V
Type of supply voltage U1AC
Power consumption AC4.5 VA
Max. device circuit breakerMax. conductor cross section

Relay outputs

Number of del. aux. contacts2
Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.6 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.6 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.4 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyR300, B300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Times

Selectable times0.7000000000000001, s, 0.4, 3, 0.2, 0.3, 2.5, 1.5, 0.1, 1, 2, 0.5, 0.05
Tolerance Tv-15% / +15% +50 ms
Repetition accuracy2 %
Max. delay time formulatv + 15 % + 50 ms

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension45 mm
Depth dimension121 mm
Net weight350 g
Gross weight360 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

774048: frequently asked questions

Can I still buy the 774048 now that it is discontinued?

Yes. Pilz has discontinued the 774048, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 774048 be shipped?

774048 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 774048 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 774048 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774048, subject to availability and destination.

More Pilz parts

Pilz 774040 – PZA 30/230VAC 1n/o 2 n/c
Pilz
774040

PZA 30/230VAC 1n/o 2 n/c

Pilz 774041 – PZA 3/24VDC 1n/o 2n/c
Pilz
774041

PZA 3/24VDC 1n/o 2n/c

Pilz 774042 – PZW 3/24VDC 1n/o 2n/c
Pilz
774042

PZW 3/24VDC 1n/o 2n/c

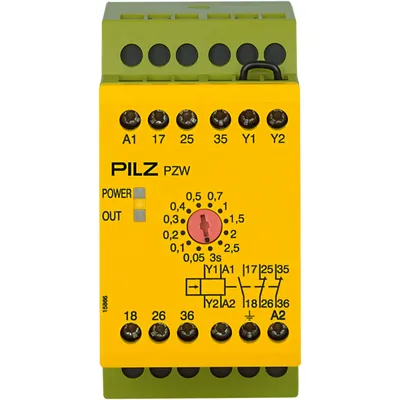

Pilz 774044 – PZW 3/110-120VAC 1n/o 2n/c
Pilz
774044

PZW 3/110-120VAC 1n/o 2n/c

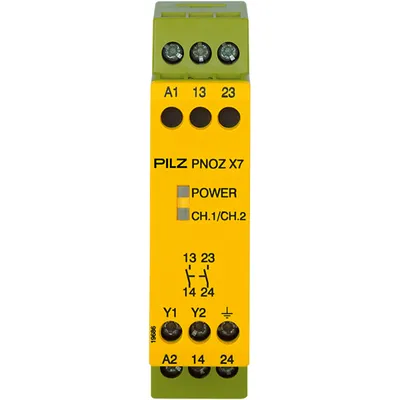

Pilz 774049 – PNOZ X7 48VAC 2n/o
