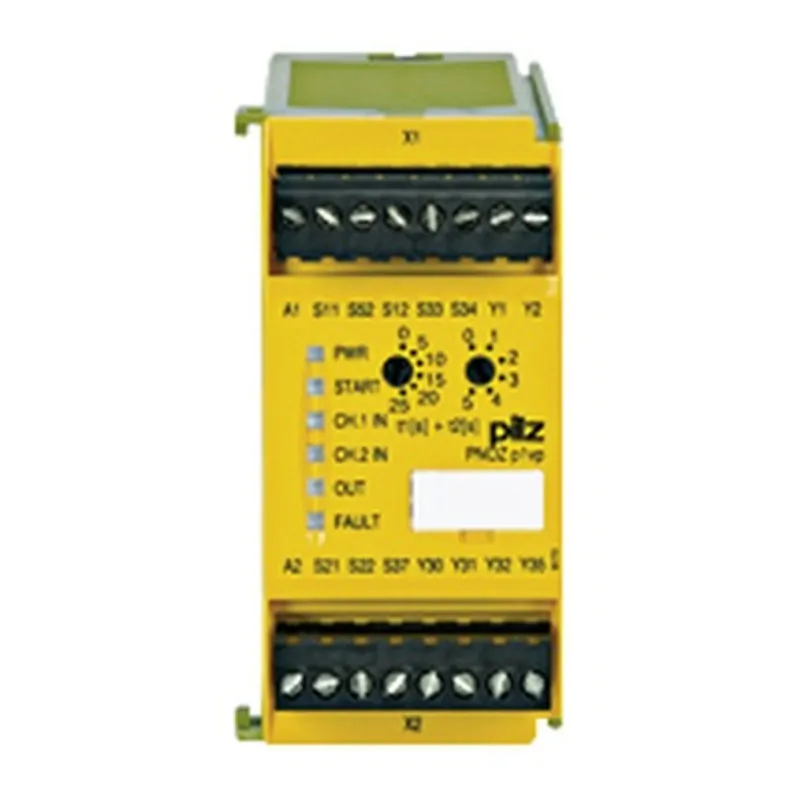

Pilz 773950 – PNOZ p1vp 30s
Discontinued by Pilz — we can still source the original 773950 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Head modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.355 kg |
| UPC / EAN | 4046548012712 |
Shipping & availability
Can I still buy the 773950 now that it is discontinued?
Yes. Pilz has discontinued the 773950, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 773950 be shipped?
773950 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773950 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773950 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773950, subject to availability and destination.
Safety relay (standalone), input: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 SC outputs,delayed control of connections is possible, automatic/monitored start, width: 45 mm, UB = 24 V DC, plug-in terminals of screw type, base unit PNOZpower modular safety system, delay 0.3 - 30 s.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 773950 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
Inputs
| Number of inputs | 2 |
Semiconductor outputs
| Number of semicond. outputs | 2 |
| Tolerance ext. volt. DC S/C | -15 %/+10 % |
| Utilisation cat. to EN 60947-1 | DC-12 |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | -10 … 55 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 60947-5-1, EN 61000-6-2, EN 61326-3-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP30 |
Times
| Time accuracy tv (end value) | +/-15 % +20 ms |
Mechanical data
| Mounting position | horizontal on top hat rail |
| Housing material upper part | ABS UL 94 V0 |
| Connection terminal | Screw terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 94 mm |
| Width dimension | 45 mm |
| Depth dimension | 135 mm |
| Net weight | 355 g |
| Gross weight | 360 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371819 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001449 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548012712 |
| Volume | 0.818 dm3 |
| Harmonized System Code | 85364900 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Operating Manual PNOZ p1vp | PDF · 1.0 MB |
| Operating Manual PNOZ p1vp | PDF · 1.4 MB |
| Operating Manual PNOZ p1vp | PDF · 0.9 MB |
| Operating Manual PNOZ p1vp | PDF · 1.4 MB |
CAD & dimension drawings
Certificates (6)
| Certificate (EAC) RU-C-DE-HB-B-03002-23 | PDF · 1.2 MB |
| Certificate (UL) NRNT.E153882 | |
| Type examination certificate (UKCA) UK-MAC000100 i01 | PDF · 0.8 MB |
| Certificate (UL) NRNT7.E153882 | |
| EU/EC-Declaration of Conformity | PDF · 0.1 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.1 MB |
