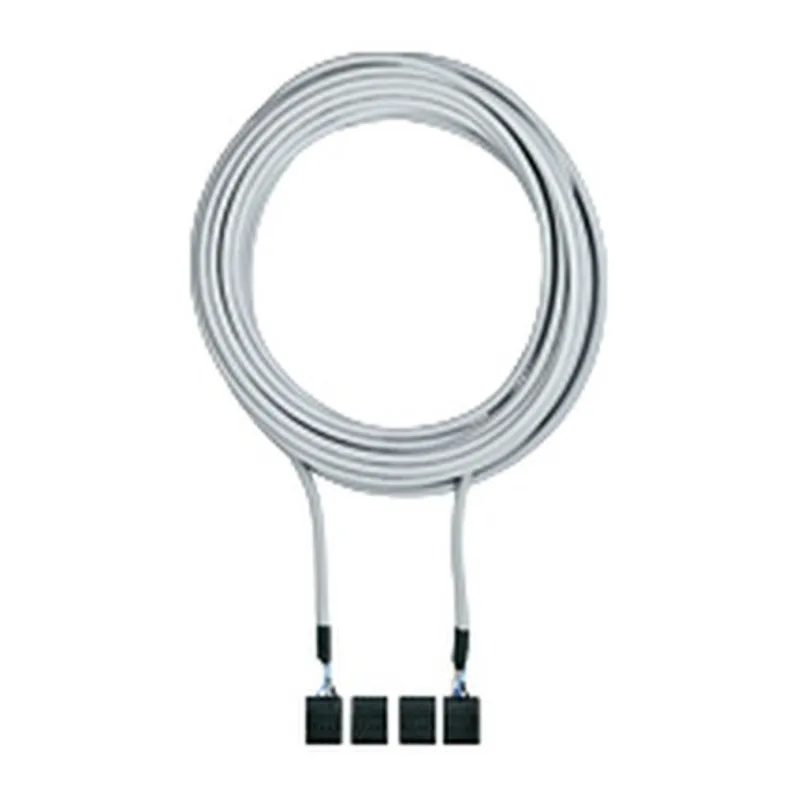

Pilz 773894 – PNOZ mli1p 10m spring
Discontinued by Pilz — we can still source the original 773894 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PNOZmulti 2 - base units |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.308 kg |
| UPC / EAN | 4046548050417 |
Shipping & availability
Can I still buy the 773894 now that it is discontinued?
Yes. Pilz has discontinued the 773894, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 773894 be shipped?
773894 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773894 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773894 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773894, subject to availability and destination.
Cable for safe connection of 2 PNOZ ml1p, 5-pin shielded, spring-loaded terminal, 10 m.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 773894 |
| Approval | cULus Listed |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Mechanical data
| Connector type 1 | 5-pin female connector |
| Connector type 2 | 5-pin female connector |
| Contact surfaces material 1 | Tin-plated |
| Material of sockets | Cu alloy |
| Length cable | 10 |
| Colour cable insulation 1 | Grey |
| Housing colour | Black RAL 9011 |
| Trailing capability of cable 1 | no |
| Shielding K1 | yes |
| Number of conductors | 5 |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Height dimension | 22 mm |
| Width dimension | 17.5 mm |
| Depth dimension | 13 mm |
| Net weight | 308 g |
| Gross weight | 322 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | Contains no SVHC substances |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | 0 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060313 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548050417 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheets: Data sheet PNOZ mli1p | PDF · 0.2 MB |
Certificates (5)
| Self Declaration (CQC) CCC_Declaration-of-exemption | PDF · 0.5 MB |
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 1.0 MB |
| UK Declaration of Conformity (UKCA) | PDF · 1.0 MB |
