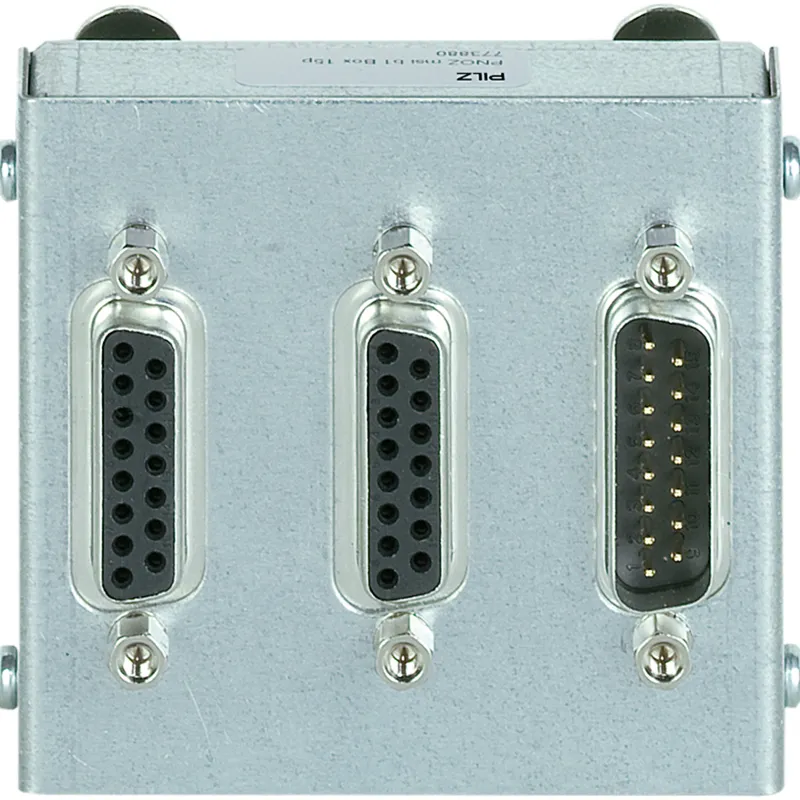

Pilz 773880
PNOZ msi b1 Box 15p
- MPN
- 773880
- EAN
- 4046548044614
- Category
- Accessories PNOZmulti
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 773880?
Adapter box for speed monitoring module, PNOZmulti Classic, 3 x 15- pin D-Sub connector, 2 x socket, 1 x connector, can be clipped to top hat rails.
Specifications
General data
| Product ID (Pilz order number) | 773880 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | 0 … 60 °C |
| Condensation permitted? | Not permitted |
| Protection type, housing | IP20 |
Mechanical data
| Connector type 1 | 15-pin D-Sub female connector |
| Connector type 2 | 15-pin D-Sub female connector |
| Connector type 3 | 15-pin D-Sub male connector |
| Housing material connector 3 | PBT |
| Contact surfaces material 1 | Au |
| Material of pins | Brass |
| Material of sockets | Brass |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Approvals for connector 3 | UL94 V-0 |
| Housing material | Hot dip galvanised steel |
| Height dimension | 60 mm |
| Width dimension | 66 mm |
| Depth dimension | 30 mm |
| Net weight | 134 g |
| Gross weight | 145 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | Contains no SVHC substances |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | 0 |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440108 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002585 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548044614 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
