Pilz 773844 – PNOZ msi1AP Adapter Si/He 25/25 5,0m

MPN: 773844 · Brand: Pilz

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories PNOZmulti
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.226 kg
UPC / EAN	4046548055528

Shipping & availability

When can 773844 be shipped?

773844 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 773844 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 773844 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773844, subject to availability and destination.

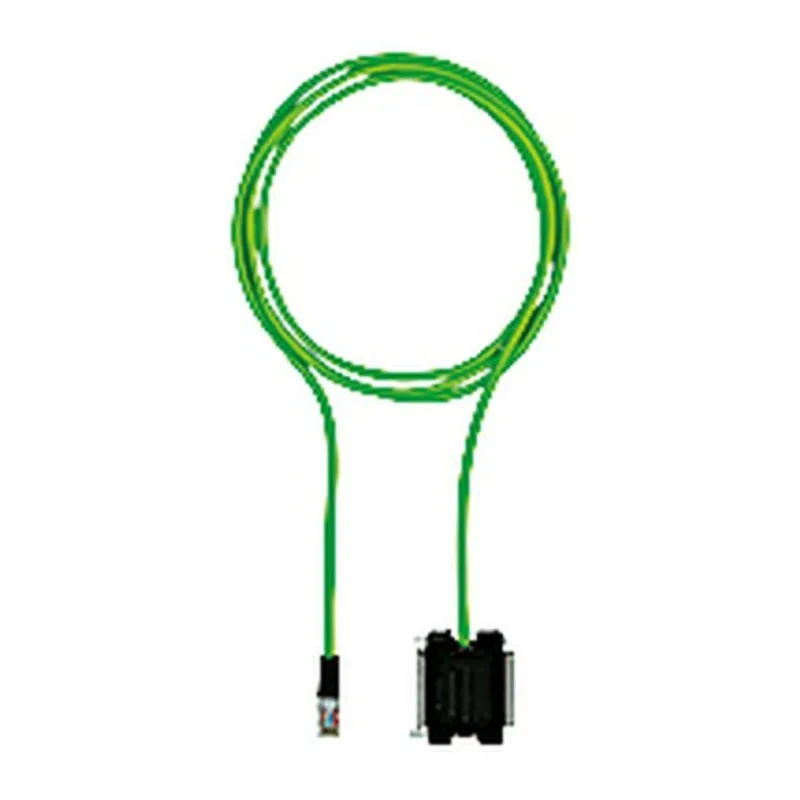

Adapter for PNOZ ms1p / PNOZ ms2p for Siemens/Heidenhain encoder,25-pin, 5 m, cable outlet left-hand side for Siemens Heidenhain.

Specifications

General data

Product ID (Pilz order number)	773844
Approval	CE, UKCA, cULus Listed
Lifecycle	Active (current Pilz product)

Environmental data

Ambient temperature	0 … 60 °C
Condensation permitted?	Not permitted
Protection type, housing	IP20

Mechanical data

Connector type 1	25-pin D-Sub male connector
Shape of connector type 1	straight
Connector type 2	25-pin D-Sub female connector
Shape of connector type 2	straight
Connector type 3	8-pin RJ45 male connector
Shape of connector type 3	straight
Fixing screws	UNC 4-40
Housing material connector 3	PBT
Contact surfaces material 1	Au
Contact surfaces material 2	Au
Contact surfaces material 3	Au
Material of pins	Cu alloy
Material of sockets	Cu alloy
Length cable	5
Tolerance of cable length K1	+/- 0.15 m
Colour cable insulation 1	Green, similar to RAL6018
Housing colour	Black RAL 9005
Material of cable insulation 1	PUR
Trailing capability of cable 1	yes
Bend radius (when laying) K1	8 x Ø
Max. outside diameter cable K1	6
Conductor cross section	0.14
Cable cross section AWG K1	26
Shielding K1	yes
Number of conductors	8
Approvals for cable K1	UL AWM-Style 20233
Approvals for connector 1	UL94 V-0
Approvals for connector 2	UL94 V-0
Approvals for connector 3	UL94 V-0
Housing material	TPE-SEBS UL 94 HB
Height dimension	38 mm
Width dimension	54.5 mm
Depth dimension	16 mm
Net weight	226 g
Gross weight	236 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	no
REACh compliance	Contains no SVHC substances
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27060313
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC001855
UNSPSC 25	26121603
GTIN	4046548055528
Volume	0 dm3
Harmonized System Code	85444290
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Operat.Manual PNOZ msi1A/B, msi3A/B

PDF · 0.7 MB

Certificates (5)

Certificate (UL) NRAQ.E183931	PDF · 0.1 MB
Self Declaration (CQC) CCC_Declaration-of-exemption	PDF · 0.5 MB
Certificate (UL) NRAQ7.E183931	PDF · 0.1 MB
EU/EC-Declaration of Conformity (Konformitätserklärung)	PDF · 0.2 MB
UK Declaration of Conformity (UKCA)	PDF · 0.1 MB
