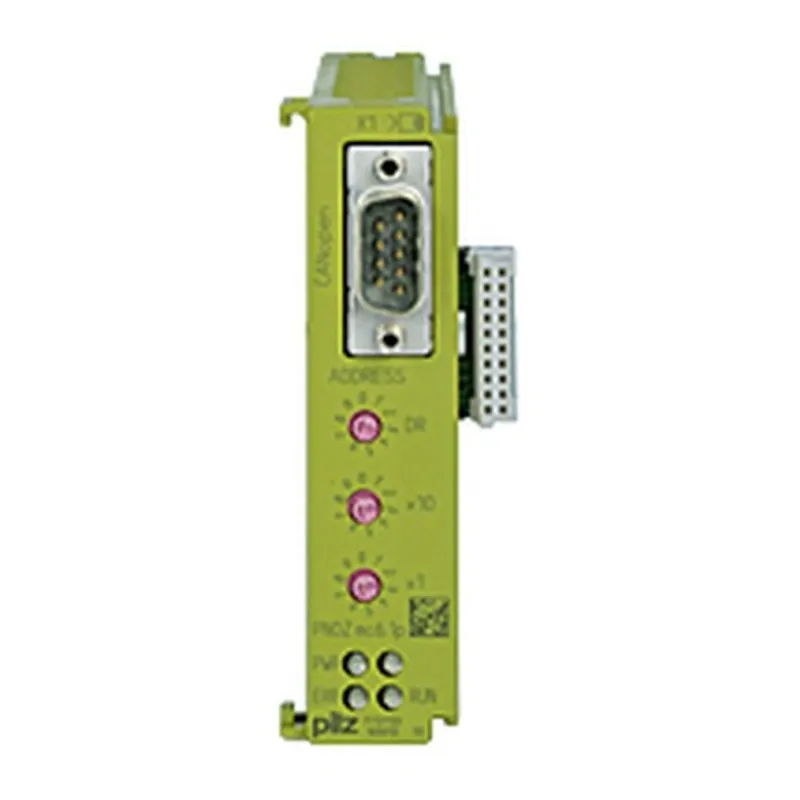

Pilz 773733 – PNOZ mc6.1p CANopen 3
Discontinued by Pilz — we can still source the original 773733 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PNOZmulti Classic – communication modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.11 kg |
| UPC / EAN | 4046548069815 |
Shipping & availability
Can I still buy the 773733 now that it is discontinued?
Yes. Pilz has discontinued the 773733, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 773733 be shipped?
773733 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773733 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773733 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773733, subject to availability and destination.
Configurable safe small controllers, PNOZmulti Classic, fieldbus module, CANopen.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 773733 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian) |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Purpose of UINT1 | Module supply |
| Source of internal voltage | Via base unit |
| Voltage type of UINT1 | DC |
| Tolerance of UINT. Module | -2 %/+2 % |
Fieldbus interface
| Fieldbus interface | CANopen |
| Fieldbus device type | Slave |
| Name of fieldbus protocol | CiA DS-301 V4.02 |
| Perm. fieldbus station address | 0 - 99d |
| Selectable transmission rates | 10 kBit/s, 20 kBit/s, 500 kBit/s, 250 kBit/s, 1 MBit/s, 50 kBit/s, 800 kBit/s, 125 kBit/s |
| Connection fieldbus | 9-pin D-Sub male connector |
| Galv. isolation fieldbus | Yes |
| Test voltage | 500 V AC |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Mounting position | horizontal on top hat rail |
| DIN-rail dimensions | 35 x 7.5 EN 50022 |
| Housing material lower section | PPO UL 94 V0 |
| Housing material front plate | ABS UL 94 V0 |
| Height dimension | 94 mm |
| Width dimension | 22.5 mm |
| Depth dimension | 119 mm |
| Net weight | 110 g |
| Gross weight | 150 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242208 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001423 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548069815 |
| Volume | 0.431 dm3 |
| Harmonized System Code | 85389091 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Device description files CANopen (EDS) PNOZmulti COM | ZIP |
| Installation Manual PNOZmulti | PDF · 1.1 MB |
| PNOZmulti Communication Interfaces | PDF · 3.0 MB |
| Operat. Man. PNOZ mc6p, PNOZ mc6.1p | PDF · 1.3 MB |
| PNOZmulti System Expansion | PDF · 1.9 MB |
| Techn. Catalogue PNOZmulti Classic/Mini | PDF · 16.2 MB |
Certificates (10)
| Type examination certificate (TÜV) M6A-020132-0284-R01 | PDF · 1.2 MB |
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| Certificate (CiA) CiA200911-301V402/20-0110 | |
| Certificate (EAC) RU-C-DE-HB-B-03002-23 | PDF · 1.2 MB |
| Self Declaration (CQC) CCC_Declaration-of-exemption | PDF · 0.5 MB |
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.2 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 0.3 MB |
| UK Declaration of Conformity (UKCA) | PDF · 1.0 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 1.0 MB |
More Pilz parts
Available on requestPNOZ mc4p DeviceNet coated version
Available on requestPNOZ mc8p Ethernet IP / Modbus TCP

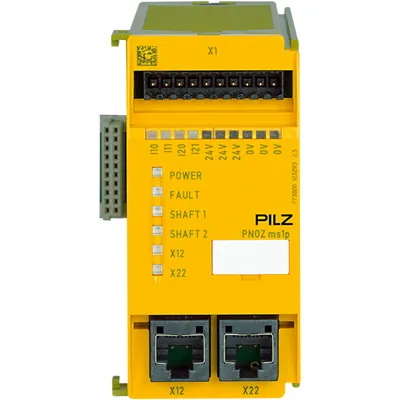

Available on requestPNOZ ms1p standstill / speed monitor
