Pilz 773104 – PNOZ m1p ETH coated version

MPN: 773104 · Brand: Pilz

Price on request

Discontinued by Pilz — we can still source the original 773104 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PNOZmulti - base units
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.538 kg
UPC / EAN	4046548066401

Shipping & availability

Can I still buy the 773104 now that it is discontinued?

Yes. Pilz has discontinued the 773104, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 773104 be shipped?

773104 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 773104 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 773104 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773104, subject to availability and destination.

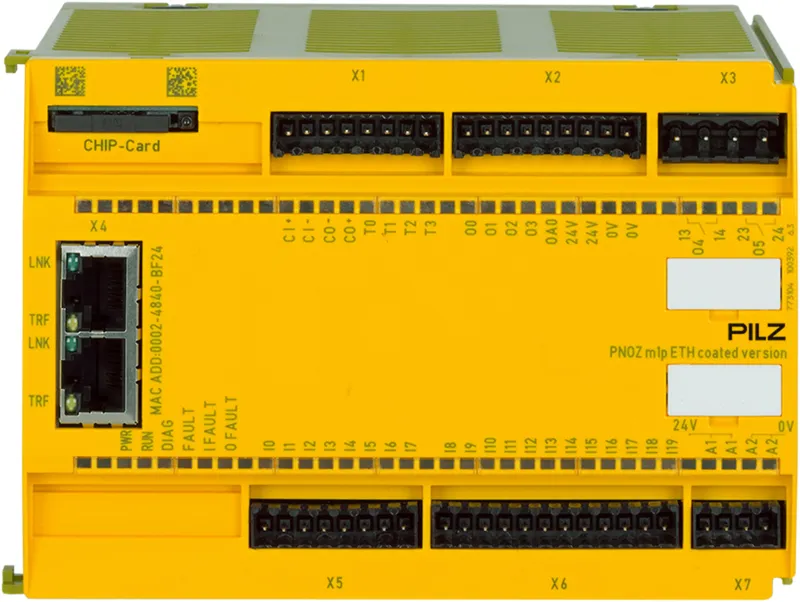

Configurable safe small controllers PNOZmulti Classic, base unit, expandable, 2 Ethernet / Modbus TCP interfaces, 20 safe digital inputs, 4 safe semiconductor outputs, 2 safe semiconductor outputs, 2 safe relayoutputs, for enhanced environmental requirements.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)	773104
Approval	CE, UKCA, cULus Listed, KCC, KOSHA, EAC (Eurasian), TÜV
Lifecycle	Discontinued (no longer manufactured by Pilz)

Electrical data

Purpose of U1	System supply
Supply voltage (V)	24
Type of supply voltage U1	DC
Purpose of U2	Supply of SC outputs
Supply voltage U2	24
Type of supply voltage U2	DC
Potential isolation U2	Yes

Inputs

Number of digital inputs	20
Max. no. live inputs	U_B <= 26.4 V : 20, U_B > 26.4 V : 15
Signal level at input at 0	-3 - +5 VDC
U input to EN 61131-2 Type 1	24 V DC
Potential isolation input	No

Semiconductor outputs

Number of semicond. outputs	4
Potential isolation of S/C O	Yes
S/C output short circuit proof	Yes

Semiconductor outputs (standard)

Number of auxiliary outputs	1
Galv. isol. n/safe SC O	Yes
Short circ. prot. n/safe S/C O	Yes
Signal level at 1 n/safe S/C O	UB - 0.5 VDC at 0.5 A

Test clock outputs

Number of test pulse outputs

Relay outputs

Number of relay outputs	2
Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240
Max. current AC1 safety cont.	6
Voltage DC1 safety cont.	24
Max. current DC1 safety cont.	6
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230
Max. current AC15 safety cont.	3
Voltage DC13 safety cont.	24
Pot. isolation relay outputs	Yes

Cascading output as standard output

Number of cascading outputs	1
Galv. isol. casc. aux. S/C O	No

Ethernet interface

Number of Ethernet interfaces

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	-25 … 60 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-30, EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	at prot. xtra low volt.: brief
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2
Vibration to standard ...	EN 60068-2-6
Broad band noise to	EN 60068-2-64
Corrosive gas check SO2	DIN V 40046-36
Corrosive gas check H2S	DIN V 40046-37
Acc. shock to standard1	15g
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	III
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, housing	IP20

Potential separation

Potential isolation 1 between	SC output and system voltage
Type of potential isolation 1	Safe separation
Potential isolation 2 between	RL output and system voltage
Type of potential isolation 2	Safe separation

Mechanical data

Mounting position	horizontal on top hat rail
DIN-rail dimensions	35 x 7.5 EN 50022
Housing material lower section	PPO UL 94 V0
Housing material front plate	ABS UL 94 V0
Connection terminal	Screw terminal, Spring-loaded terminal
Flex. cond. c/s AWG info	24 - 16 AWG
Cond.flex AWG w/o crimp conn.	24 - 12 AWG
Height dimension	94 mm
Width dimension	135 mm
Depth dimension	121 mm
Net weight	538 g
Gross weight	557 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 6c, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242207
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC000236
UNSPSC 25	39122331
GTIN	4046548066401
Volume	1.680 dm3
Harmonized System Code	85371091

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Application Note_PNOZm ETH TCP-IP S7	PDF · 4.2 MB
Application Notes: Application Note Content	PDF · 1.0 MB
Installation Manual PNOZmulti	PDF · 1.1 MB
PNOZmulti Special Applications	PDF · 2.4 MB
Operating Manual PNOZ m1p (ETH)	PDF · 1.7 MB
PNOZmulti System Expansion	PDF · 1.9 MB
Techn. Catalogue PNOZmulti Classic/Mini	PDF · 16.2 MB

Certificates (9)

Type examination certificate (KOSHA) 2012-27	PDF · 2.1 MB
Type examination certificate (KOSHA) 2009-175	PDF · 1.5 MB
Type examination certificate (TÜV) M6A-020132-0284-R01	PDF · 1.2 MB
Type examination certificate (KOSHA) 2012-27-1	PDF · 1.0 MB
Certificate (EAC) RU-C-DE-HB-B-03002-23	PDF · 1.2 MB
Self Declaration (CQC) CCC_Declaration-of-exemption	PDF · 0.5 MB
Type examination certificate (KCC) 34YD-SM14-GPTB-SAF0	PDF · 0.5 MB
UK Declaration of Conformity (UKCA)	PDF · 0.2 MB
EU/EC-Declaration of Conformity (Konformitätserklärung)	PDF · 0.3 MB
