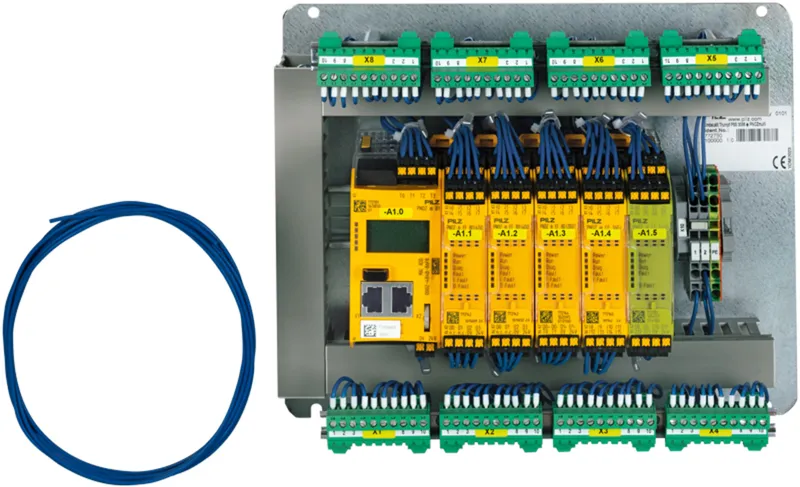

Pilz 772750
Conversion kit Trumpf PSS 3056-PNOZmulti
- MPN
- 772750
- EAN
- 4046548107685
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 772750?
Replacement for a Trumpf PSS3056 component based on PNOZmulti 2 mounted on base plate ready to plugin.
Specifications
General data
| Product ID (Pilz order number) | 772750 |
| Approval | CE |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 55 °C |
| Storage temperature standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Perm. operating height ASL | 2000 m |
| Protection type standard | EN 60529 |
| Protection type, housing | IP54, IP20 |
Mechanical data
| Height dimension | 120 mm |
| Width dimension | 230 mm |
| Depth dimension | 275 mm |
| Net weight | 2500 g |
| Gross weight | 3380 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242207 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC000236 |
| GTIN | 4046548107685 |
| Volume | 26.505 dm3 |
| Harmonized System Code | 85371091 |
| Quantity per packaging unit | 1 |
