Pilz 772601
PDP67 F 8DI4DO 5/5 VA ION
- MPN
- 772601
- EAN
- 4046548105391
- Category
- PNOZmulti 2 - safe I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 772601?

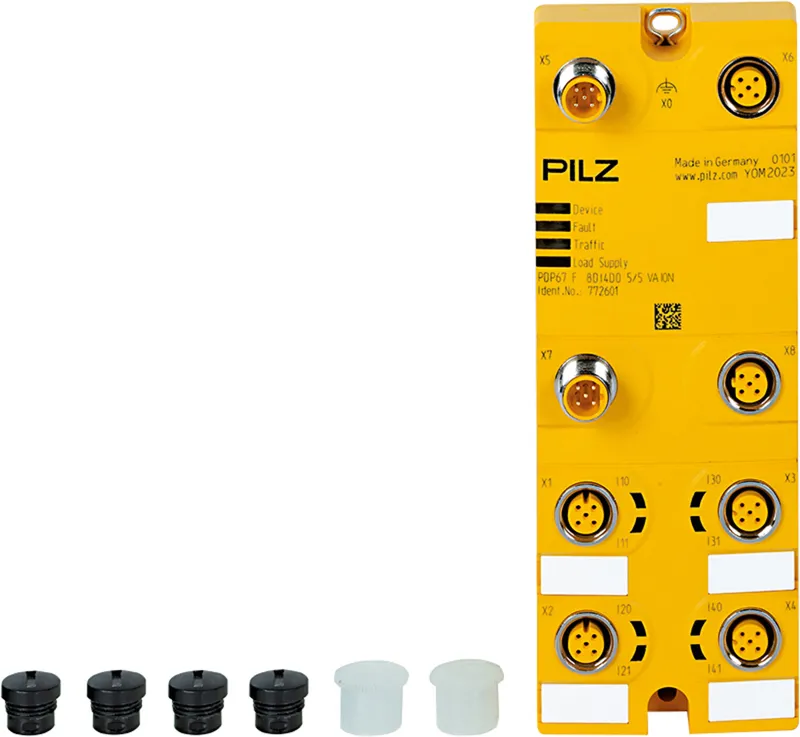

Decentralised input/output module for PNOZmulti 2, protection type Ip67, stainless steel connections, connection via connection module PDP link,8 safe digital inputs, 4 safe outputs, 8 outputs configurable as standard, test pulse or 24 V, connections 4 x M12 5-pin.
Specifications
General data
| Product ID (Pilz order number) | 772601 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Application range | Standard/Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Purpose of U2 | Load Supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Max. device circuit breaker | 10 A |
Inputs
| Number of inputs | 8 |
| DC voltage at input | 24 V |
| Input type to EN 61131-2 | 1, 3 |
| Potential isolation input | ja |
Semiconductor outputs
| Function of S/C output | Testtaktausgang, 24 V DC-Ausgang, Standardausgang |
| DC voltage at output | 24 V DC |
| Potential isolation of S/C O | ja |
| S/C output short circuit proof | ja |
| Perm. load 1pole Output | ohmsch, induktiv, kapazitiv |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -30 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. F. bei 40 °C |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61000-4-8, EN IEC 61000-6-4, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Acc. shock to standard2 | 10g |
| Clearance & creepage dist. to | IEC 60664-1 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP67 (not evaluated by UL) |
Potential separation
| Potential isolation 1 between | Eingang und int. Busspannung |
| Type of potential isolation 1 | Basisisolierung |
| Potential isolation 2 between | HL-Ausgang und int. Busspann. |
| Type of potential isolation 2 | Basisisolierung |
Mechanical data
| Housing material | PBT, Valox 855, PET |
| Housing material code | PC |
| Connection terminal | M12 1.4305 Edelstahl |
| Terminal style | schraubverriegelt |
| Height dimension | 162 mm |
| Width dimension | 60 mm |
| Depth dimension | 30 mm |
| Net weight | 315 g |
| Gross weight | 332 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242204 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001419 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548105391 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
