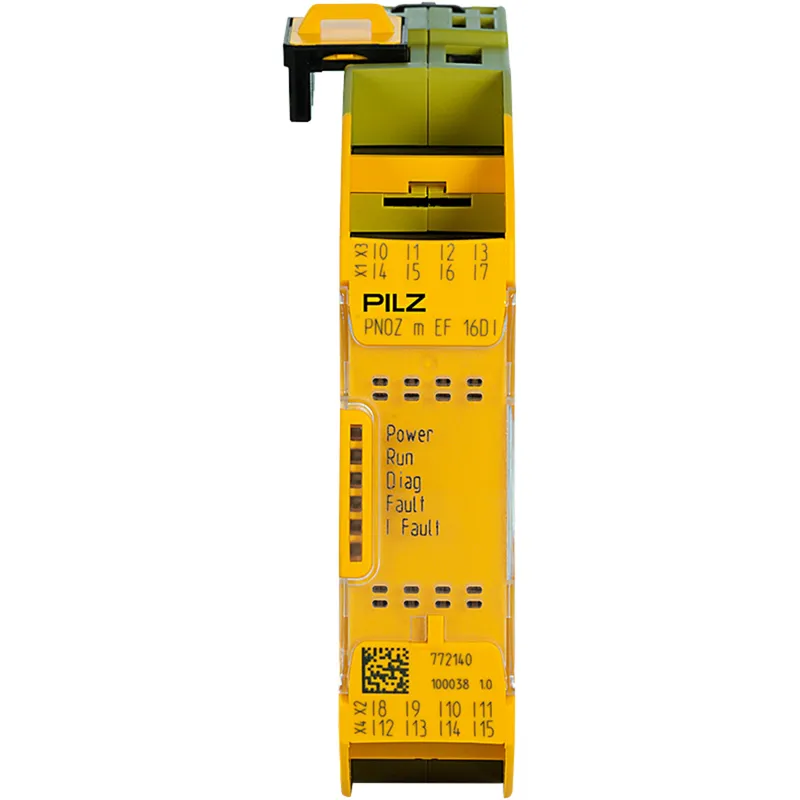

Pilz 772140

PNOZ m EF 16DI

MPN: 772140
EAN: 4046548069655
Category: PNOZmulti 2 - safe I/O modules

€221.54excl. VAT & shipping

In stock — 3 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 772140?

Configurable safe small controllers PNOZmulti 2, expansion module, 16 safe digital inputs.

Specifications

General data

Product ID (Pilz order number)	772140
Approval	CE, UKCA, cULus Listed, TÜV, EAC (Eurasian)
Application range	Fail-safe
Lifecycle	Active (current Pilz product)

Electrical data

Purpose of UINT1	Versorgung des Moduls
Source of internal voltage	über Basisgerät
Voltage type of UINT1	DC

Inputs

Number of digital inputs	16
U input to EN 61131-2 Type 1	24 V DC
Potential isolation input	nein

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-30, EN 60068-2-78
Condensation permitted?	unzulässig
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, mounting	IP54
Protection type, housing	IP20
Terminal protection type	IP20

Mechanical data

Mounting position	waager. auf Hutschiene
DIN-rail dimensions	35 x 7,5 EN/IEC 60715, 35 x 15 EN/IEC 60715
Housing material lower section	PC
Housing material front plate	PC
Housing material upper part	PC
Connection terminal	Federkraftklemme, Schraubklemme
Terminal style	steckbar
Flex. cond. c/s AWG info	24 - 12 AWG
Height dimension	101.4 mm
Width dimension	22.5 mm
Depth dimension	120 mm
Net weight	95 g
Gross weight	105 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead
%-part of the pollutant	> 0,1 %
CAS No.	7439-92-1
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242204
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001419
UNSPSC 25	39122331
GTIN	4046548069655
Volume	0.373 dm3
Harmonized System Code	85389091
Quantity per packaging unit	1
