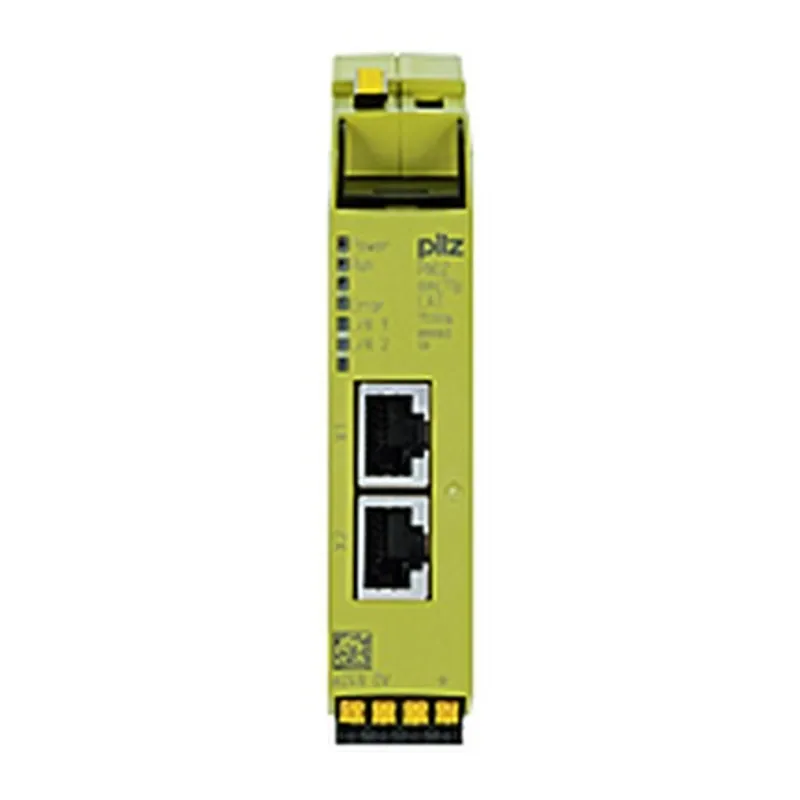

Pilz 772036 – PNOZ mmc11p CAT
Discontinued by Pilz — we can still source the original 772036 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PNOZmulti Mini – compact controllers |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.081 kg |
| UPC / EAN | 4046548069174 |
Shipping & availability
Can I still buy the 772036 now that it is discontinued?
Yes. Pilz has discontinued the 772036, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 772036 be shipped?
772036 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 772036 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 772036 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 772036, subject to availability and destination.
Configurable safe compact controllers PNOZmulti Mini, fieldbus module, EtherCAT.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 772036 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian) |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Purpose of U1 | Module supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 1.5 |
Fieldbus interface
| Fieldbus interface | EtherCAT |
| Fieldbus device type | Slave |
| Name of fieldbus protocol | CANopen over EtherCAT |
| Selectable transmission rates | 100 MBit/s |
| Connection fieldbus | RJ45 |
| Galv. isolation fieldbus | Yes |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Potential separation
| Potential isolation 1 between | Fieldbus and module |
| Type of potential isolation 1 | Functional insulation |
Mechanical data
| Mounting position | horizontal on top hat rail |
| DIN-rail dimensions | 35 x 7.5 EN 50022 |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material upper part | PC |
| Connection terminal | Screw terminal, Spring-loaded terminal |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 100 mm |
| Width dimension | 22.5 mm |
| Depth dimension | 115 mm |
| Net weight | 81 g |
| Gross weight | 98 g |
Environment
| RoHS conformity | yes |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242208 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001423 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548069174 |
| Volume | 0.330 dm3 |
| Harmonized System Code | 85176200 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Device description files EtherCat (XML) PNOZmulti Mini COM | ZIP |
| Operating Manual PNOZ mmc11p | PDF · 1.2 MB |
| Techn. Catalogue PNOZmulti Classic/Mini | PDF · 16.2 MB |
CAD & dimension drawings
Certificates (7)
| Certificate (EAC) RU-C-DE-HB-B-03002-23 | PDF · 1.2 MB |
| Self Declaration (CQC) CCC_Declaration-of-exemption | PDF · 0.5 MB |
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| Certificate () | |
| UK Declaration of Conformity (UKCA) | PDF · 1.0 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 1.0 MB |
