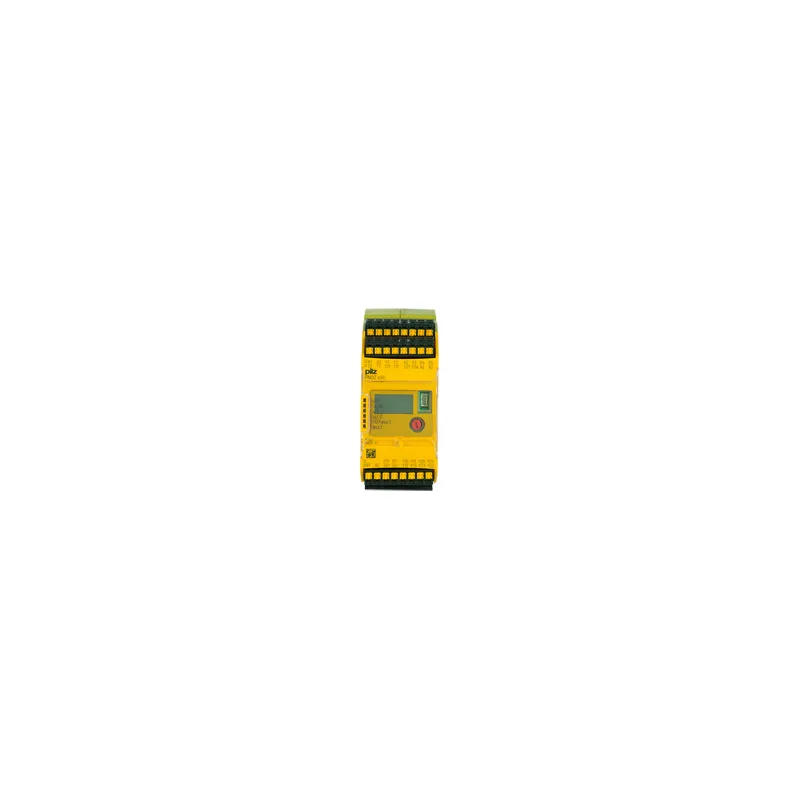

Pilz 751500
PNOZ s50 C
- MPN
- 751500
- EAN
- 4046548066012
- Category
- Brake control
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 751500?
PNOZsigma brake control and monitoring device, safe braking inaccordance with PL e and SIL 3, UB = 24 V DC, 2x 5 A, display operation push & turn, plug-in spring-loaded terminals, safe control of inductive loads (for example valves, mechanical holding brakes).
Specifications
General data
| Product ID (Pilz order number) | 751500 |
| Approval | CE, CCC, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Versorgung des Systems |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 18 |
| Device circuit breaker U1 | P_GERAETEABSICH_AUTOMAT_U1_4 A, Autom 24 V DC, Char.B/C |
| Potential isolation U1 | P_U_1_POT_TRENN_VORH_nein |
| Purpose of U2 | Versorgung 2pol. HL-Ausgänge |
| Supply voltage U2 | 24, 48 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -10 %/+20 % |
| Potential isolation U2 | Yes |
Inputs
| Number of inputs | 8 |
| No. s/c inputs failsafe | 4 |
| No. s/c inputs standard | 4 |
| Potential isolation input | No |
Semiconductor outputs
| Number of semicond. outputs | 0 |
| SC outp. 1p. short circ.-proof | P_HLA_1P_KURZSCHLUSSFEST_JA |
| Pot. isol. S/C output | P_HLA_1P_POT_TRENN_VORH_nein |
| Perm. load 1pole Output | Resistive, Inductive, Capacitive |
Semiconductor outputs 2-pole
| Number 2-pin SC outputs | 2 |
| Volt. tol. reduced operation | P_HLA_2P_ABSENKBETR_TOLERANZ_ -10 %/+10 % |
| SC outp. 2p. short circ.-proof | P_HLA_2P_KURZSCHLUSSFEST_JA |
Voltage outputs
| Voltage at supply V o/p | P_VERSORG_AUSGANG_U_24 V DC |
| Supply V o/p short circ. proof | P_VERSORG_AUSG_KURZSCHLUSSFEST_JA |
| Pot. isolation voltage output | P_VERSORG_AUSG_POT_TRENN_VORH_nein |
Test clock outputs
| Number of test pulse outputs | 2 |
Environmental data
| Climatic suitability to ... | P_KLIMA_EN 60068-2-2, P_KLIMA_EN 60068-2-1, P_KLIMA_EN 60068-2-78, P_KLIMA_EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61000-4-8, EN 61000-4-4, EN 61000-4-5, EN 61326-3-1, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60664-1 |
| Overvoltage category | III |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
Times
| Ventilation time | P_LUEFTZEIT_30 ms ... 4000 ms |
| Engage. time fast shutdown | P_EINFALLZEITBEREICH_SCHNELL_30 ms ... 4000 ms |
| Engage. time slow shutdown | P_EINFALLZEITBEREICH_LANGSAM_30 ms ... 4000 ms |
| Config. overexcitation time | P_UEBERERREGUNG_ZEIT_KONFIG_100 ms ... 2500 ms |
Potential separation
| Potential isolation 1 between | 2pole SCO & system voltage |
| Type of potential isolation 1 | Basic insulation |
Mechanical data
| Mounting position | horizontal on top hat rail |
| Housing material lower section | P_GEHAEUSE_MAT_U_PC |
| Housing material front plate | P_GEHAEUSE_MAT_F_PC |
| Housing material upper part | PC |
| Connection terminal | Spring-loaded terminal |
| Terminal style | plug-in |
| Height dimension | 100 mm |
| Width dimension | 45 mm |
| Depth dimension | 120 mm |
| Net weight | 257 g |
| Gross weight | 276 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371819 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001449 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548066012 |
| Volume | 0.600 dm3 |
| Harmonized System Code | 85364190 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (9)
- Certificate (CQC) 2024010303682025
- Certificate (CQC) 2024010305681909
- Certificate (CQC) 2024010305681904
- Certificate (EAC) RU-C-DE-HB-B-03002-23
- Certificate (UL) E183931
- Type examination certificate (TÜV) M6A-020132-0272-R01
- EU/EC-Declaration of Conformity
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
