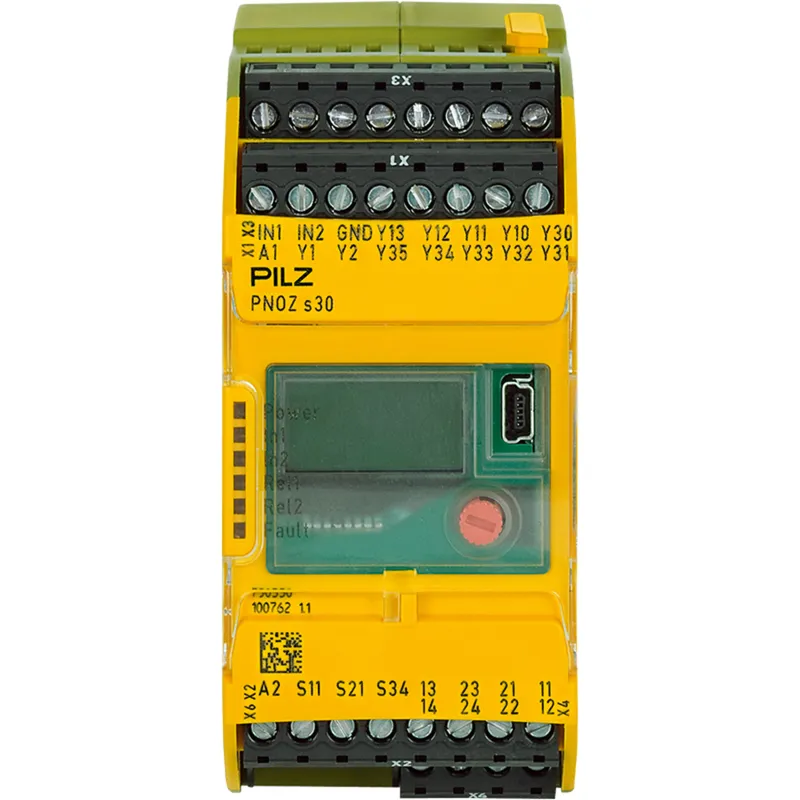

Pilz 750330
PNOZ s30 24-240VACDC 2 n/o 2 n/c
- MPN
- 750330
- EAN
- 4046548062397
- Category
- Speed monitoring
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 750330?
PNOZsigma safety relay (standalone), inputs: incremental encoder, proximity switch, outputs: 2 N/O, 2 N/C, UB: 24 -240 V AC/DC, width: 45 mm, monitoring of standstill, speed, speed range, position, direction, analogue voltage (track S), display handling push & turn, plug-in screw terminals, expansion with PNOZsigma contact expansion.
Specifications
General data
| Product ID (Pilz order number) | 750330 |
| Approval | CCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption AC | 9 |
| Power consumption DC | 5.5 |
| Supply voltage U2 | 48 |
| Type of supply voltage U2 | AC |
| Tolerance of U2 | -15 %/+10 % |
| Max. device circuit breaker | P_GERAETEABSICH_MAX_Max-Leiterquerschnitt |
Input proximity switch
| Prog. mon.fun. wo hyst prox sw | P_NS_F_UEBERWACH_PROGR_OHNE_HY_10 mHz - 1.000 kHz |
Input incremental encoder
| Number of incremental encoder | 1 |
| Connection (increment encoder) | P_IG_ANSCHLUSS_RJ-45-Buchsenstecker, 8polig |
| Phase pos. diff.sign. inc.enc. | P_IG_EIN_PHASE_DIFF_SIGNALE_90° ±30° |
| Prog. mon. fun. wo hyst. incr. | P_IG_F_UEBERWACH_PROGR_OHNE_HY_10 mHz - 1.000 kHz |
Reset input
| Semiconductor inputs | 4 |
Analogue outputs
| Number of analogue outputs | 1 |
| Type of analogue outputs | P_AUSGANG_ANALOG_ART_Strom |
| Signal range analog output | P_AUS_ANA_SIGNAL_BEREICH_4 .. 20 mA, P_AUS_ANA_SIGNAL_BEREICH_0 .. 20 mA |
Semiconductor outputs
| Number of semicond. outputs | 4 |
| Tolerance ext. volt. DC S/C | P_HALBL_TOLERANZ_UB_EXT_DC_-20 %/+20 % |
| Utilisation cat. to EN 60947-1 | P_GEBRAUCHSKATEGORIE_DC-12 |
Relay outputs
| Utilisation cat. AC/DC1 stand. | P_SCHALTVERMOEGEN_NACH_EN 60947-4-1 |
| Voltage AC1 safety cont. | 240 |
| Max. current AC1 safety cont. | 4 |
| Voltage DC1 safety cont. | 24 |
| Max. current DC1 safety cont. | 4 |
| Utilisation cat. AC15/DC13sta. | P_SCHALTVERMOEGEN_13_NACH_EN 60947-5-1 |
| Voltage AC15 safety cont. | 230 |
| Max. current AC15 safety cont. | 3 |
| Voltage DC13 safety cont. | 24 |
| Safety contacts: AC at UL | P_SCHALT_SI_AC_UL_U_B_240 V AC G.U. (same polarity) |
| Relay contact material | P_KONT_MAT_AgCuNi |
| Addit. contact details relay | P_KONT_MAT_ZUSATZ_+ 0,2 µm Au |
Environmental data
| Climatic suitability to ... | P_KLIMA_EN 60068-2-78 |
| Ambient temperature | -20 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | unzulässig |
| EMC to standard ... | EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 61326-3-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP30 |
Times
| Reaction time over limit value | P_VERZ_GRENZWERT_1/f_ist + 16 ms |
Mechanical data
| Mounting position | horizontal on top hat rail |
| Housing material lower section | P_GEHAEUSE_MAT_U_PC |
| Housing material front plate | P_GEHAEUSE_MAT_F_PC |
| Housing material upper part | PC |
| Connection terminal | Screw terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | P_QUER_1L_AWG_24 - 12 AWG |
| Height dimension | 98 mm |
| Width dimension | 45 mm |
| Depth dimension | 120 mm |
| Net weight | 405 g |
| Gross weight | 425 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371811 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001448 |
| UNSPSC 25 | 39121527 |
| GTIN | 4046548062397 |
| Volume | 0.600 dm3 |
| Harmonized System Code | 85364900 |
| Quantity per packaging unit | 1 |
