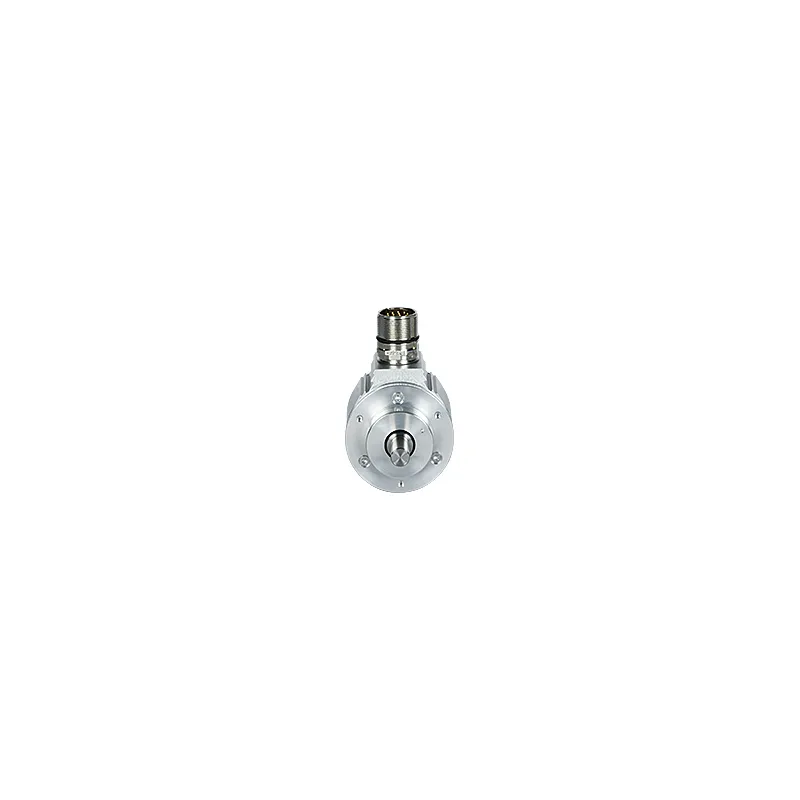

Pilz 6Z000003
PSEN enc HTL 1024 ss
- MPN
- 6Z000003
- EAN
- 4046548095111
- Category
- PSENenco - rotary encoder
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 6Z000003?
Safe incremental encoder, 1024 pulses per revolution, with HTL interface, solid shaft 10 mm, feather key compatible.
Specifications
General data
| Product ID (Pilz order number) | 6Z000003 |
| Approval | UL Listed, CE, UKCA, TÜV, EAC (Eurasian) |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 V |
| Power consumption DC | 0.96 W |
Environmental data
| Ambient temperature | -40 … 90 °C |
| Max. relative humidity | 98 % |
| Condensation permitted? | Not permitted |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 100g |
| Protection type standard | EN 60529 |
| Protection type, housing | IP65 |
Mechanical data
| Connection type | M23, 12-pin |
| Housing material | Aluminium |
| Height dimension | 90.6 mm |
| Width dimension | 58 mm |
| Depth dimension | 72.2 mm |
| Net weight | 295 g |
| Gross weight | 483 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27270502 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001486 |
| UNSPSC 25 | 39121527 |
| GTIN | 4046548095111 |
| Volume | 3.357 dm3 |
| Harmonized System Code | 90318020 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6Z000003: frequently asked questions
When can 6Z000003 be shipped?
6Z000003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6Z000003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6Z000003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6Z000003, subject to availability and destination.
