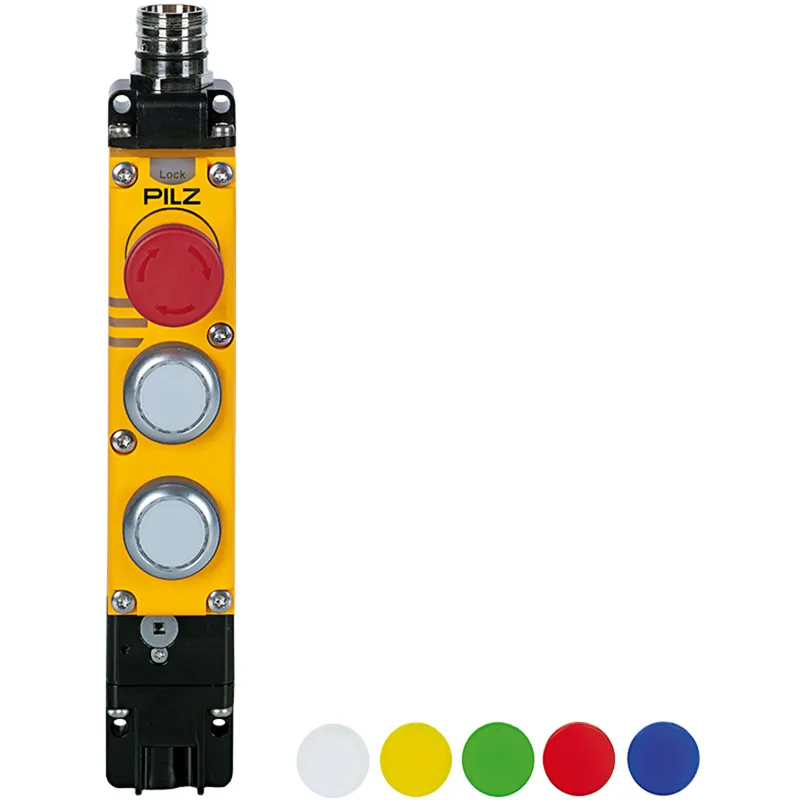

Pilz 6M000035 – PSEN mg1-A-LLFXX-RBA2-U1-U switch

MPN: 6M000035 · Brand: Pilz

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PSENmgate
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.061 kg
UPC / EAN	4046548111309

Shipping & availability

When can 6M000035 be shipped?

6M000035 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6M000035 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6M000035 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6M000035, subject to availability and destination.

Safety gate system PSENmgate, with operation elements, 2 illuminated pushbuttons (1 NO each) and 1 E-STOP pushbutton (2 NC + 1 NO), fullycoded, with automatic reset, safety switch for entry from left, 19-pin M23 male connector, cable outlet upwards, single connection

Specifications

General data

Product ID (Pilz order number)	6M000035
Approval	CE, UKCA, cULus Listed, FCC, IC, EAC (Eurasian), TÜV
Sensor principle	Transponder
Coding level to ISO 14119	High
Classification to EN 60947-5-3	PDDB
Transponder coding	fully coded
Reset type	Automatic reset
Suitable for series connection	no
unit type	Sensor
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Power consumption DC	1 W

Inputs

Number of inputs	7
DC voltage at input	24 V DC

Emergency stop

Number, E-STOP N/C	2
Number, E-STOP signal contact	1
Release type emergency stop	Turn release
Contact material E-STOP	Au
Cont. mat. sign. cont. E-STOP	Au

Push button

Number, pushbutton	2
Switch cap. p/b to standard	EN 60947-5-1
Contact material pushbutton	Ag

Semiconductor outputs

Number of OSSD outputs	2
Number of sig. outputs	1
Potential isolation S/C O	No
S/C output short circuit proof	Yes
Utilisation cat. to EN 60947-1	DC-13

Button

Contact material button	AgNi
Switch cap. button to standard	EN 60947-5-1

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Perm. operating height ASL	2000 m
EMC to standard ...	EN 55011: Class A, EN 60947-5-3, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	30g
Overvoltage category	III
Pollution degree clear.&creep.	3
Protection type, housing	IP65

Times

Pulse length lock/unlock req.

350 - 400 ms

Mechanical data

Escape release available	No
Type 1 actuator	PSEN ml 2.1
Sensor can be flush-mounted	No
Product material	Zn, Aluminium, Galvanised steel, Plastic, Stainless steel
Housing material upper part	Plastic
Height dimension	237.5 mm
Width dimension	40 mm
Depth dimension	65 mm
Net weight	1061 g
Gross weight	1529 g

Transponder

Operating frequency

122 kHz - 128 kHz

Environment

WEEE classification (08/2018)

5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27272603
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002593
GTIN	4046548111309
Volume	0 dm3
