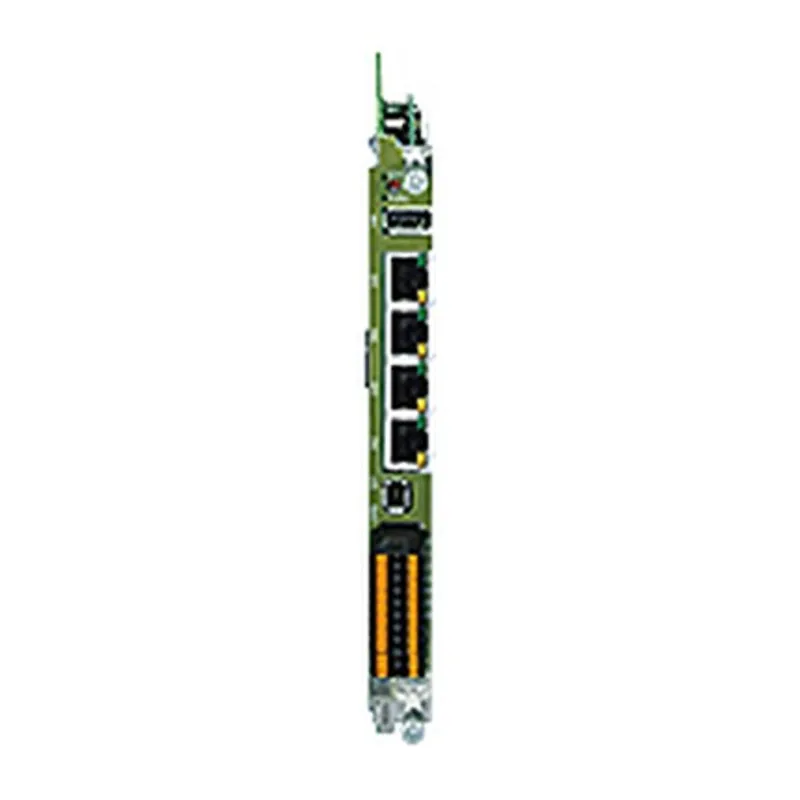

Pilz 680183 – PMCprimo C2.0/C/C/5

MPN: 680183 · Brand: Pilz
Price on request

Discontinued by Pilz — we can still source the original 680183 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryPMCprotego S safety card
LifecycleDiscontinued
Warranty12-month (new) · 3-month (used/refurbished)
Weight0.2 kg
UPC / EAN4046548091304

Shipping & availability

Can I still buy the 680183 now that it is discontinued?

Yes. Pilz has discontinued the 680183, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 680183 be shipped?

680183 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 680183 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 680183 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 680183, subject to availability and destination.

primo-motion-controller card for servo-drive-series PMCprotego D 01-72; Hardware-Option: CPU 1,3 GHz, Configurable CANopen/Profibus; Software- Option: Dynamic curve calculation, IEC 61131-3 -programming.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)680183
ApprovalCE, UKCA
Application rangeStandard
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of U1supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Permitted loadsResistive, Inductive, Capacitive

CPU

Memory for applications512 MB
Processor clock speed1.3 GHz
RAM512 MB

Absolute encoder input

No. of inputs absolute encoder1
Connection (absolute encoder)Mini-IO female connect., 8-pin
Supply voltage for ABS10 ... 30 VDC
Signal clock output ABSDifferential signal (RS 422)
Signal data input ABSDifferential signal (RS 422)
Pot. isolation absolute&systemYes

Input incremental encoder

Number of incremental encoder1
Connection (increment encoder)8-pin Mini-IO female connector
Supply voltage for incr.10 ... 30 VDC, 4.75 ... 5.25 VDC
Phase pos. diff.sign. inc.enc.90° ±30°

Inputs

Number of inputs8
Signal level at input at 0-3 - +5 VDC
U input to EN 61131-2 Type 124 V DC
Potential isolation inputYes

Semiconductor outputs

Tolerance ext. volt. DC S/C-15 %/+20 %
Pot. isol. S/C outputYes
S/C output short circuit proofYes

PROFIBUS-DP interface

Profibus typeSlave
Perm. PROFIB. statn. addresses0 ... 126d
Setting PROFIBUS station addr.Software
Connector type Profibus inter.RJ45
Name PROFIBUS protocolDPV0
PROFIBUS operating modesAutoBaud
Name description file profibPilz0DCC.gsd
PROFIBUS manufacturer ID0DCCh

Ethernet interface

Ethernet IP addr. factory set192.168.0.11
Connector type ETHERNET int.RJ45
Ethernet transmission rate1 Gbit/s
Number of Ethernet interfaces1

CANopen interface

Number of CANopen interfaces1, 2
CANopen typeMaster, Slave
Canopen cycle time1 ms, 2 ms, 4 ms
Canopen transmission times500 kBit/s, 250 kBit/s, 1000 kBit/s
Pot. isolation CAN and systemyes

EtherNet/IP interface

Pot. isol. EtherNet & systemYes

Ethercat interface

Connector type Ethercat int.RJ45
Ethercat transmission rate100 MBit/s
Pot. isolation EtherCAT&systemYes

Environmental data

Climatic suitability to ...EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
Ambient temperature standardEN 60068-2-14
Ambient temperature0 … 40 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard1150 m/s²
Cooling typeBuilt-in fan
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Potential separation

Potential isolation 1 betweenRotary encoder&system voltage
Type of potential isolation 1Basic insulation
Potential isolation 2 betweenEthernet and system voltage
Type of potential isolation 2Basic insulation
Potential isolation 3 betweenEtherCAT and system voltage
Type of potential isolation 3Basic insulation
Potential isolation 4 betweenSC output and system voltage
Type of potential isolation 4Basic insulation
Potential isolation 5 betweenInput and system voltage
Type of potential isolation 5Basic insulation
Potential isolation 6 betweenCANopen and system voltage
Type of potential isolation 6Basic insulation

Mechanical data

Housing material front plateSteel 1.4016
Housing material upper partPolyester film
Terminal styleplug-in
Height dimension173 mm
Width dimension18.5 mm
Depth dimension97 mm
Net weight200 g
Gross weight300 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 6a
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead
%-part of the pollutant> 0,1
CAS No.7439-92-1
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242090
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC000236
UNSPSC 2539122331
GTIN4046548091304
Volume1.784 dm3
Harmonized System Code85371091
Quantity per packaging unit1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Application Note PMC Basic ProjectPDF · 1.0 MB
Operat.Manual PMCprimo C2PDF · 4.4 MB
Programming Manual CODESYS 3CHM · 3.5 MB

CAD & dimension drawings

CAD 2D drawing (DXF Autodesk Drawing Interchange Format)ZIP · 0.1 MB
CAD 2D drawing (Portable Document Format (Adobe Acrobat))PDF · 0.1 MB
CAD 3D model (STEP - Product Model Data)ZIP · 0.3 MB
CAD 3D model (IGES - Initial Graphics Exchange Spec.)ZIP · 4.3 MB
Certificates (2)
EU/EC-Declaration of Conformity (Konformitätserklärung)PDF · 1.0 MB
UK Declaration of Conformity (UKCA)PDF · 1.0 MB
