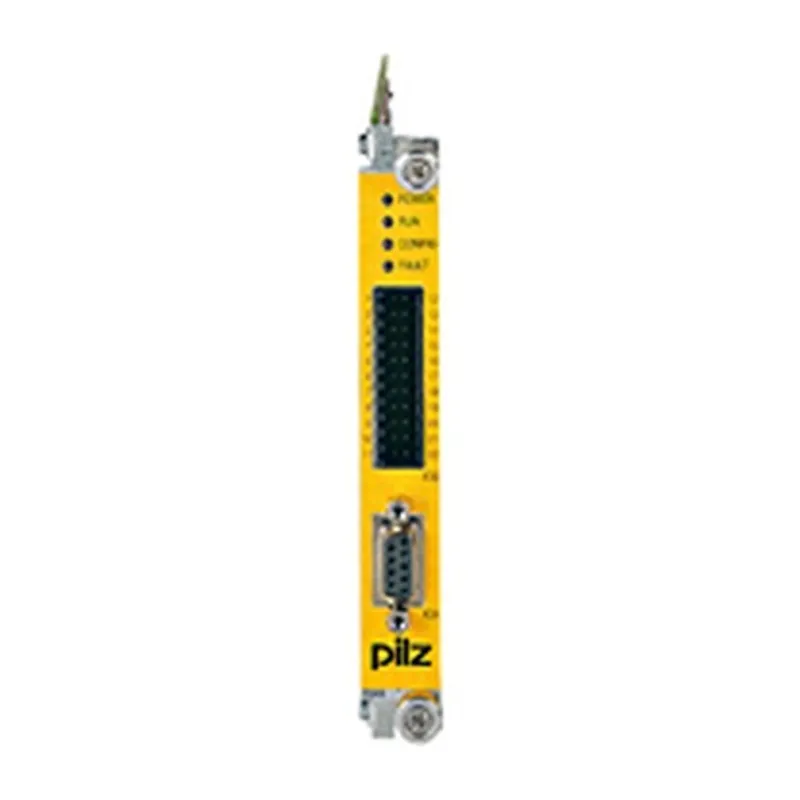

Pilz 680000 – PMCprotego S1
Discontinued by Pilz — we can still source the original 680000 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PMCprotego S safety card |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.15 kg |
Shipping & availability
Can I still buy the 680000 now that it is discontinued?
Yes. Pilz has discontinued the 680000, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 680000 be shipped?
680000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 680000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 680000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 680000, subject to availability and destination.
Drive-integral safety card for the servo amplifier series PMCprotego D implementable safety level: SIL 3 in accordance with EN/IEC 62061 supported safety functions: STO, SS1, SS2, SOS, SLS, SSR, SDI, SBC, SBT.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 680000 |
| Approval | CE, TÜV |
| Application range | Failsafe |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Permitted loads | Resistive, Inductive, Capacitive |
Absolute encoder input
| No. of inputs absolute encoder | 1 |
| Supply voltage for ABS | 10 ... 30 VDC, 4.75 ... 5.25 VDC |
| Signal clock output ABS | Differential signal (RS 422) |
| Signal data input ABS | Differential signal (RS 422) |
| Potent. isol. ABS/per. supply | No |
| Potent. isol. ABS/mod. supply | Yes |
Input SinCos encoder, incremental encoder
| Connector type encoder/incr.en | 9-pin D-Sub female connector |
Input incremental encoder
| Number of incremental encoder | 1 |
| Supply voltage for incr. | 10 ... 30 VDC, 4.75 ... 5.25 VDC |
| Phase pos. diff.sign. inc.enc. | 90° ±30° |
Inputs
| Number of digital inputs | 9 |
| Number of inputs | 9 |
| Signal level at input at 0 | -3 - +5 VDC |
| U input to EN 61131-2 Type 1 | 24 V DC |
Semiconductor outputs
| Tolerance ext. volt. DC S/C | -15 %/+20 % |
| S/C output short circuit proof | Yes |
Semiconductor outputs 2-pole
| Number 2-pin SC outputs | 1 |
Semiconductor outputs (standard)
| Galv. isol. n/safe SC O | Yes |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | DIN EN 60721-3-3 |
| Ambient temperature | 0 … 40 °C |
| Storage temperature standard | DIN EN 60721-3-1 |
| Climatic suitability standard | DIN EN 60721-3-3 |
| Humidity rating | 85 % r. h. |
| Condensation permitted? | Not permitted |
| EMC to standard ... | EN 61800-3 |
| Vibration to standard ... | IEC 721-3-3 |
| Clearance & creepage dist. to | EN 61800-5-1 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Housing material front plate | Steel 1.4016 |
| Housing material upper part | Polyester film |
| Terminal style | plug-in |
| Height dimension | 142 mm |
| Width dimension | 18.5 mm |
| Depth dimension | 103 mm |
| Net weight | 150 g |
| Gross weight | 170 g |
Environment
| REACh compliance | contains min. 1 SVHC-substance |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-9.1 |
| ECLASS Reference Feature | 27023201 |
| ETIM Version | ETIM-7.0 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Operating Manual PMCprotego S1 | PDF · 2.2 MB |
CAD & dimension drawings
| Electrical CAD Data: EPLAN P8 Macro | EDZ · 0.1 MB |
Certificates (3)
| Type examination certificate (TÜV) M6A-020132-0199-R02 | PDF · 0.7 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 1.0 MB |
| UK Declaration of Conformity (UKCA) | PDF · 1.0 MB |
