Pilz 632045

PSEN opII3F-s-14-090

MPN: 632045
EAN: 4046548076189
Category: Basic Type 3 light curtain, finger protection

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

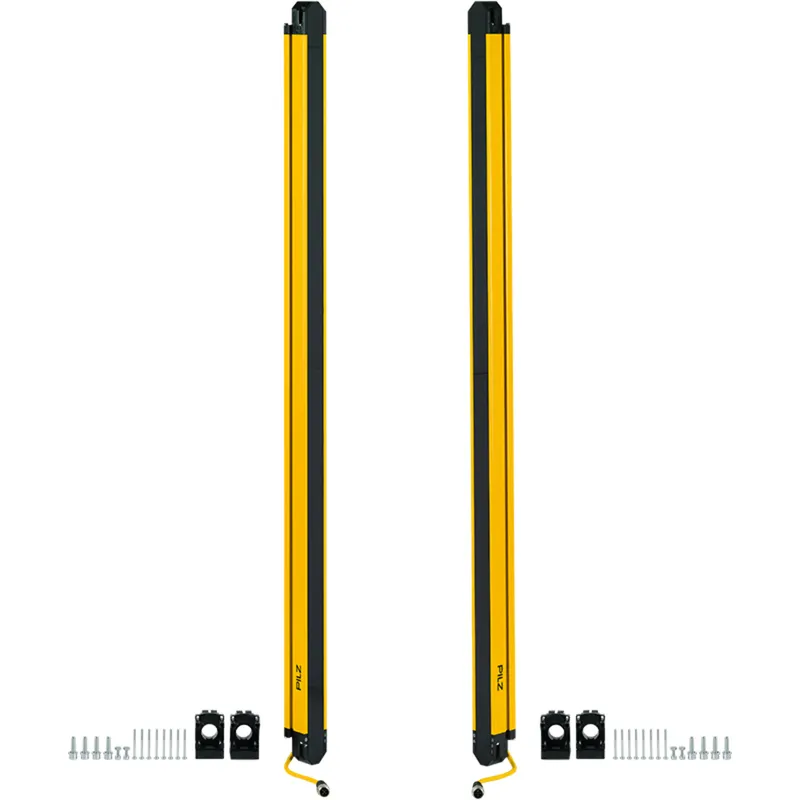

What is the Pilz 632045?

Safety light guard, Type 3, PL d, finger protection (resolution 14 mm), protected field height 900 mm without dead zone, supply voltage 24 V. Connector M12, transmitter: 5-pin, receiver 5-pin. Connection cable not supplied with the device.

Specifications

General data

Product ID (Pilz order number)	632045
Approval	CE, UKCA, cULus Listed, KCs, TÜV, EAC (Eurasian)
ESPE type	3
Sensor principle	Infrarot
Height of protected field	900
Resolution protection type	Finger
Operating range (m)	0.2
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC

Optical data

Used wavelength range

850 nm

Semiconductor outputs

Number of OSSD outputs

Environmental data

Ambient temperature	-25 °C
Humidity rating	95 % r. h. at 50 °C
Condensation permitted?	unzulässig
Perm. operating height ASL	2000 m
EMC to standard ...	P_EMV_NORM_IEC 61496-1
Vibration to standard ...	EN 60068-2-6
Bracket for shock standard 1	Adv Bracket Kit
Acc. shock to standard1	40g
Bracket for shock standard 2	Adv Bracket Kit
Acc. shock to standard2	50g
Bracket for shock standard 3	Swivel-Mount
Protection type, housing	IP65

Times

Reaction time

12.3

Mechanical data

Bend radius (when laying) K1	5 x Ø
Max. cable length	50
Housing material	Aluminium
Material end caps	Zn
Material front screen	PC
Height dimension	904 mm
Width dimension	35 mm
Depth dimension	40 mm
Net weight	2675 g
Gross weight	4640 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead
%-part of the pollutant	> 0,1
CAS No.	7439-92-1
SCIP entry available	yes
WEEE classification (08/2018)	4 devices (feed size >50 cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27272704
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002549
UNSPSC 25	39121528
GTIN	4046548076189
Volume	22.880 dm3
Harmonized System Code	85365019
Quantity per packaging unit	1
