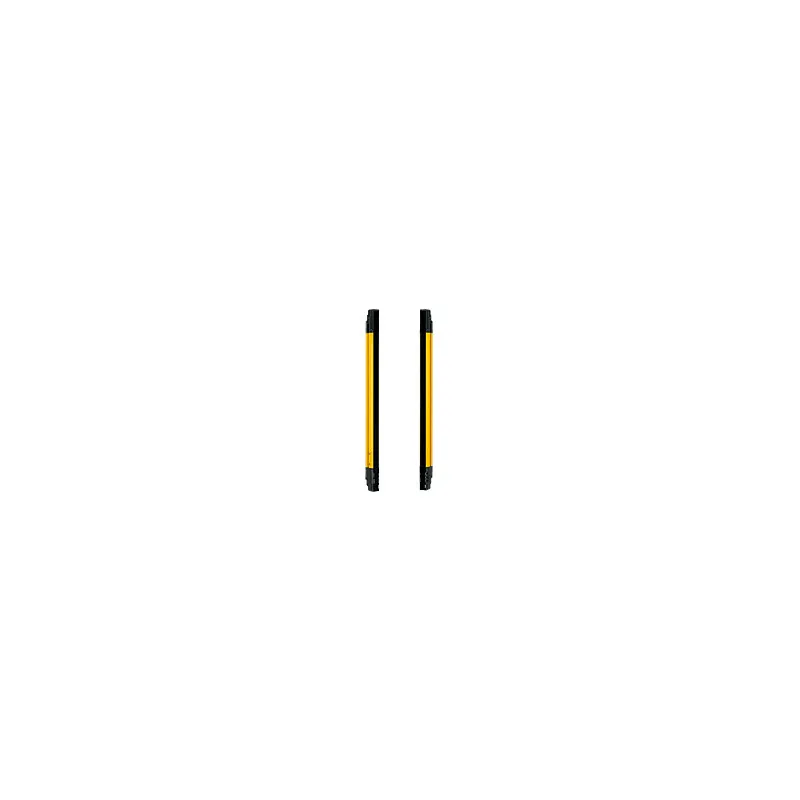

Pilz 631047

PSEN op2H-A-30-135/1

MPN: 631047
EAN: 4046548075625
Category: Advanced Type 2 light curtain, hand protection

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 631047?

Safety light guard, Type 2, PL c, hand protection (resolution 30 mm), protected field height 1350 mm. Features: Muting, blanking, cascading, absence of dead zones. Programming is possible via Software PSENoptConfigurator or directly on the light guard. Supply voltage 24 V, connection via 18-pin pigtail cable on M12 connector. Connector M12 transmitter: 5- pin, receiver: Blanking 12-pin, muting 12-pin/5-pin. Pigtail cables are not supplied with the device.

Specifications

General data

Product ID (Pilz order number)	631047
Approval	CE, cULus Listed, TÜV, EAC (Eurasian)
ESPE type	2
Sensor principle	optical
Height of protected field	1350
Resolution protection type	Hand
Operating range (m)	0.2, 20
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC

Optical data

Used wavelength range

950 nm

Semiconductor outputs

Number of OSSD outputs

Environmental data

Ambient temperature	0 … 50 °C
Humidity rating	95 % r. h. at 50 °C
Condensation permitted?	Not permitted
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	10g
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, housing	IP65

Times

Reaction time

Mechanical data

Housing material upper part	Aluminium
Height dimension	1356.3 mm
Width dimension	35 mm
Depth dimension	40.8 mm
Net weight	3300 g
Gross weight	6350 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	no
REACh compliance	Contains no SVHC substances
WEEE classification (08/2018)	4 devices (feed size >50 cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27272704
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002549
UNSPSC 25	39121528
GTIN	4046548075625
Volume	22.398 dm3
Harmonized System Code	90314990
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (7)
