Pilz 630933
PSEN op67-69K-060/1
- MPN
- 630933
- EAN
- 4046548068757
- Category
- Accessories PSENopt
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pilz 630933?

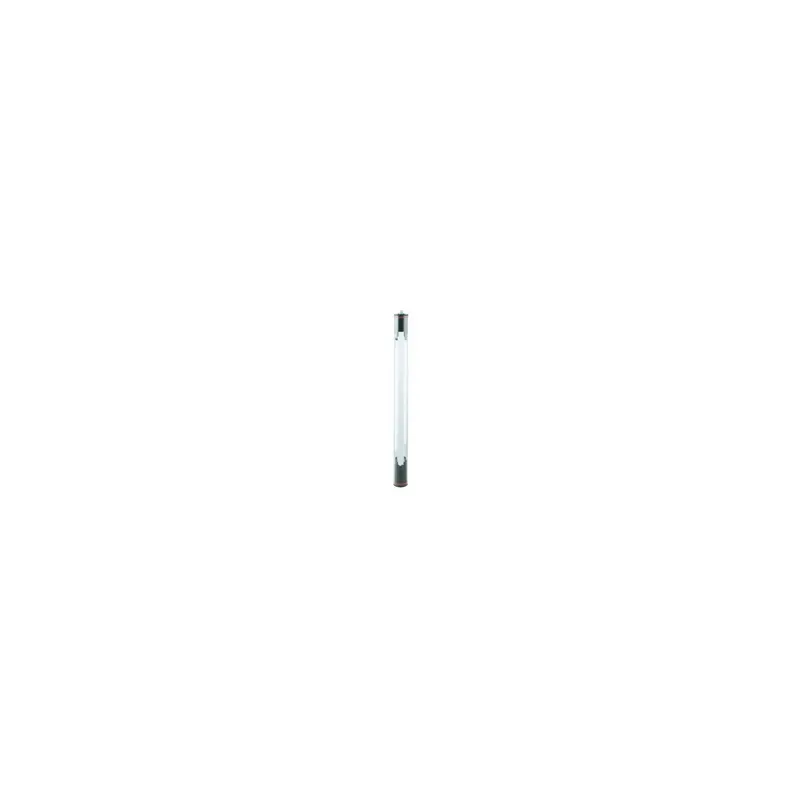

PMMA acrylic tube for sealing and protecting a safety light guard with a length of 60 cm of the series "PSEN op.../1".The IP protection class is increased from IP65 to IP67, IP68 and IP69K. TheGore-Tex membrane at the caps prevents the intrusion of dirt and water and internal condensation. The connection cable of the light guard is run through an M16 PG cable screw connection and it prevents the intrusion of dirt and water.
Specifications
General data
| Product ID (Pilz order number) | 630933 |
| Approval | - |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Protection type, housing | IP69K, IP67 |
Mechanical data
| Housing material | PMMA |
| Height dimension | 828.5 mm |
| Net weight | 1700 g |
| Gross weight | 2000 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 4 devices (feed size >50 cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27273791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 32131023 |
| GTIN | 4046548068757 |
| Volume | 0 dm3 |
| Harmonized System Code | 90319000 |
| Quantity per packaging unit | 1 |
