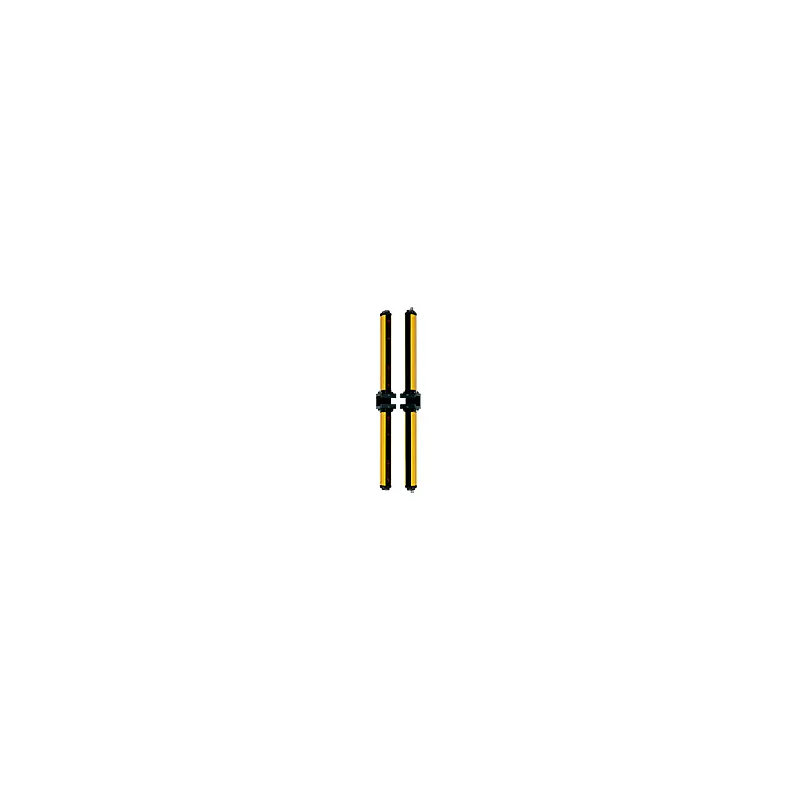

Pilz 630821
PSEN op2.2 T-Muting Set
- MPN
- 630821
- EAN
- 4046548077070
- Category
- Accessories PSENopt
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 630821?
Sensor T-muting arm with passive reflector unit and matching bracket on the basis light guard PSEN opXX-xx-xxx/1.
Specifications
General data
| Product ID (Pilz order number) | 630821 |
| Approval | CE |
| Sensor principle | optical |
| Operating range (m) | 0.5, 3 |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
Optical data
| Used wavelength range | 650 nm |
Environmental data
| Ambient temperature | -10 … 55 °C |
| Humidity rating | 95 % r. h. at 55 °C |
| Condensation permitted? | Not permitted |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 10g |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP65 |
Mechanical data
| Housing material upper part | Aluminium |
| Height dimension | 60 mm |
| Width dimension | 655.1 mm |
| Depth dimension | 40 mm |
| Net weight | 3000 g |
| Gross weight | 3300 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 0 not relevant |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 46171620 |
| GTIN | 4046548077070 |
| Volume | 14.624 dm3 |
| Harmonized System Code | 90319000 |
| Quantity per packaging unit | 1 |
