Pilz 570621

PSEN sl-1.0 2.1 1actuator

MPN
570621
EAN
4046548061369
Category
PSENslock
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 570621 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

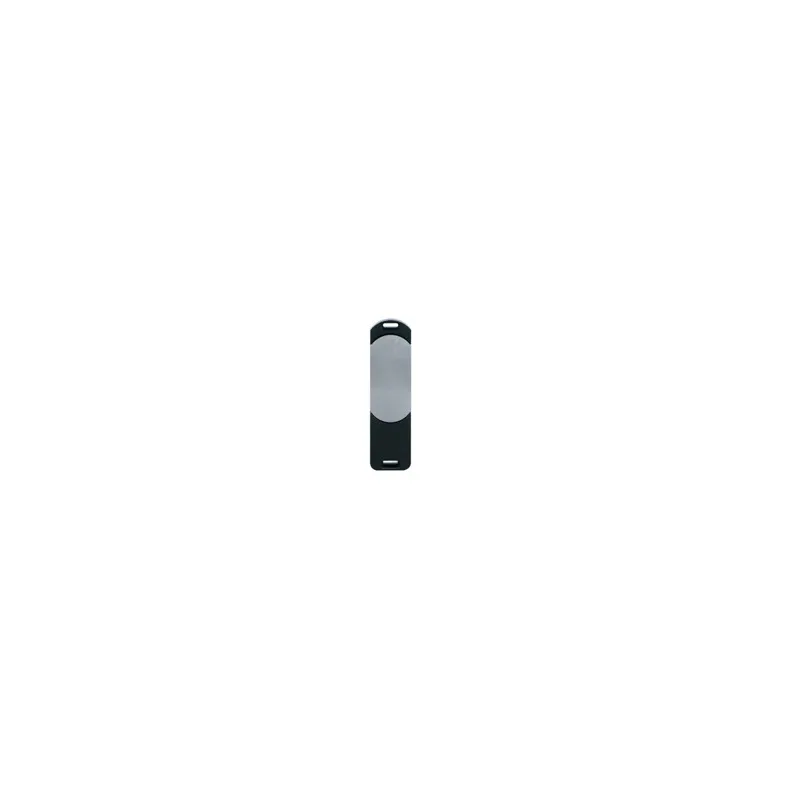

What is the Pilz 570621?

Actuator (standard), fully coded, for safety locking device PSENslock, aluminium base plate, for holding force 1000 N

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)570621
ApprovalCE, UKCA, cULus Listed, FCC, IC, EAC (Eurasian)
Sensor principleTransponder
Coding level to ISO 14119High
Transponder codingfully coded
unit typeActuator
LifecycleDiscontinued (no longer manufactured by Pilz)

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature-25 … 55 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r. h. at 40 °C
EMC to standard ...EN 55011: Class A, EN 60947-5-3, EN 62061
Vibration to standard ...EN 60947-5-2
Acc. shock to standard130g
Protection type, housingIP67

Mechanical data

Housing material upper partPBT
Material of anchor plateNickel-plated steel
Material actuatorAnticorodal, hard anodised
Height dimension188 mm
Width dimension52 mm
Depth dimension22 mm
Net weight600 g
Gross weight680 g

Environment

WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27272606
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC001487
UNSPSC 2539122205
GTIN4046548061369
Volume0 dm3
Harmonized System Code85389099
Quantity per packaging unit1

570621: frequently asked questions

Can I still buy the 570621 now that it is discontinued?

Yes. Pilz has discontinued the 570621, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 570621 be shipped?

570621 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 570621 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 570621 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 570621, subject to availability and destination.
