Pilz 570564 – PSEN sl-0.5n 2.1 / PSEN sl-0.5fm 1unit

MPN: 570564 · Brand: Pilz

Price on request

Discontinued by Pilz — we can still source the original 570564 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PSENslock
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.94 kg
UPC / EAN	4046548080896

Shipping & availability

Can I still buy the 570564 now that it is discontinued?

Yes. Pilz has discontinued the 570564, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 570564 be shipped?

570564 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 570564 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 570564 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 570564, subject to availability and destination.

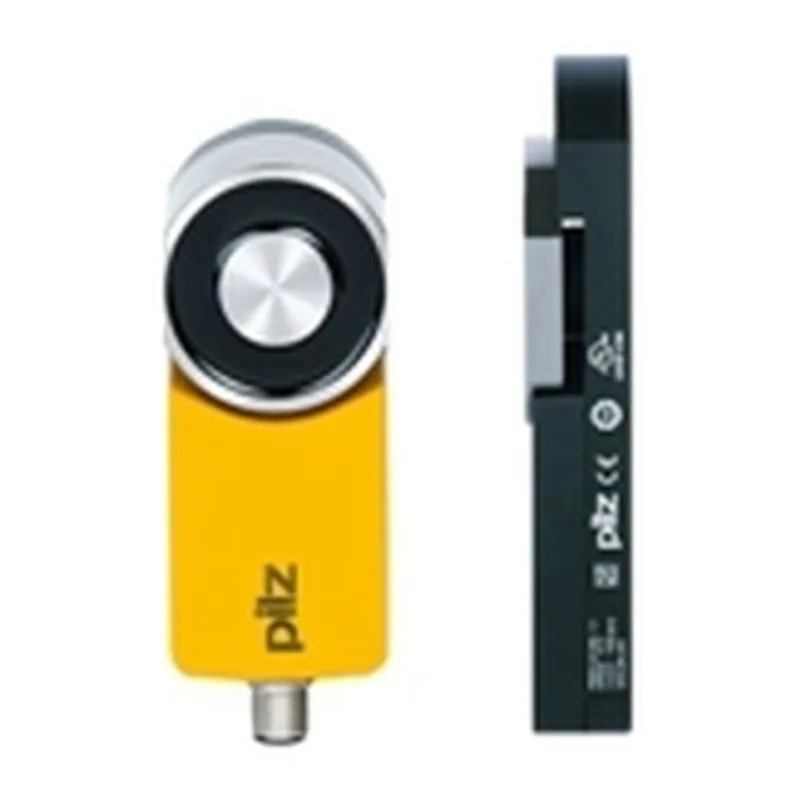

Safety locking device PSENslock, fully coded, with electromagnetic guard locking, with safety switch and actuator (free-moving), guard locking for process protection, holding force 500 N, 5-pin M12 male connector, single connection

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)	570564
Approval	CE, UKCA, cULus Listed, FCC, IC, EAC (Eurasian)
Sensor principle	Transponder
Coding level to ISO 14119	High
Classification to EN 60947-5-3	PDDB
Transponder coding	fully coded
Suitable for series connection	no
unit type	Unit
Lifecycle	Discontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC
Power consumption DC	4.8

Inputs

Number of inputs

Semiconductor outputs

Number of OSSD outputs	2
Number of sig. outputs	0
S/C output short circuit proof	Yes
Utilisation cat. to EN 60947-1	DC-12

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	-25 … 55 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
EMC to standard ...	EN 55011: Class A, EN 60947-5-3, EN 62061
Vibration to standard ...	EN 60947-5-2
Acc. shock to standard1	30g
Overvoltage category	III
Pollution degree clear.&creep.	3
Protection type, housing	IP67

Mechanical data

Holding force magnet on	500
Max. vertical offset	5 mm
Max. angular offset	2.5 deg
Type 1 actuator	PSEN sl-0.5fm 2.1
Sensor can be flush-mounted	Yes, follow installation guide
Connection type	M12, 5-pin male
Cable lines	LiYY 5 x 0.25 mm2
Housing material upper part	PBT
Material of anchor plate	Nickel-plated steel
Material of base plate	Anticorodal, hard anodised
Material actuator	Anticorodal, hard anodised
Height dimension	122 mm
Width dimension	45 mm
Depth dimension	44 mm
Net weight	940 g
Gross weight	980 g

Transponder

Operating frequency

122 kHz - 128 kHz

Environment

WEEE classification (08/2018)

5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27272603
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002593
UNSPSC 25	39122205
GTIN	4046548080896
Volume	0 dm3
Harmonized System Code	85365019
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Operat.Manual PSEN sl-0.5n	PDF · 0.9 MB
Operat.Man. PSEN sl-0.5n 1.1/2.1/2.2	PDF · 0.9 MB
Operat.Manual PSEN sl-0.5n 2.1/2.2	PDF · 1.8 MB

CAD & dimension drawings

CAD 2D drawing (Portable Document Format (Adobe Acrobat))	PDF · 0.1 MB
CAD 2D drawing (DXF Autodesk Drawing Interchange Format)	ZIP · 0.1 MB
CAD 2D drawing (DXF Autodesk Drawing Interchange Format)	ZIP · 0.1 MB
CAD 2D drawing (Portable Document Format (Adobe Acrobat))	PDF · 0.1 MB
CAD 2D drawing (Portable Document Format (Adobe Acrobat))	PDF · 0.1 MB
CAD 2D drawing (DXF Autodesk Drawing Interchange Format)	ZIP · 0.1 MB
CAD 3D model (STEP - Product Model Data)	ZIP
CAD 3D model (IGES - Initial Graphics Exchange Spec.)	ZIP · 0.1 MB
CAD 3D model (STEP - Product Model Data)	ZIP · 0.1 MB
CAD 3D model (IGES - Initial Graphics Exchange Spec.)	ZIP · 0.2 MB
Electrical CAD Data: EPLAN P8 Macro	EDZ

Certificates (8)

Self Declaration (CQC) CCC_Declaration-of-exemption	PDF · 0.5 MB
Certificate (CETECOM) 7482A-PSENSLP	PDF · 0.4 MB
Certificate (UL) NKCR7.E300872	PDF
Type examination certificate (KOSHA) 2016-125-(01-10)	PDF · 4.0 MB
Certificate (CETECOM) VT8-PSENSLP	PDF · 0.1 MB
EU/EC-Declaration of Conformity (Konformitätserklärung)	PDF · 0.2 MB
EU/EC-Declaration of Conformity	PDF · 0.1 MB
UK Declaration of Conformity (UKCA)	PDF · 0.2 MB
