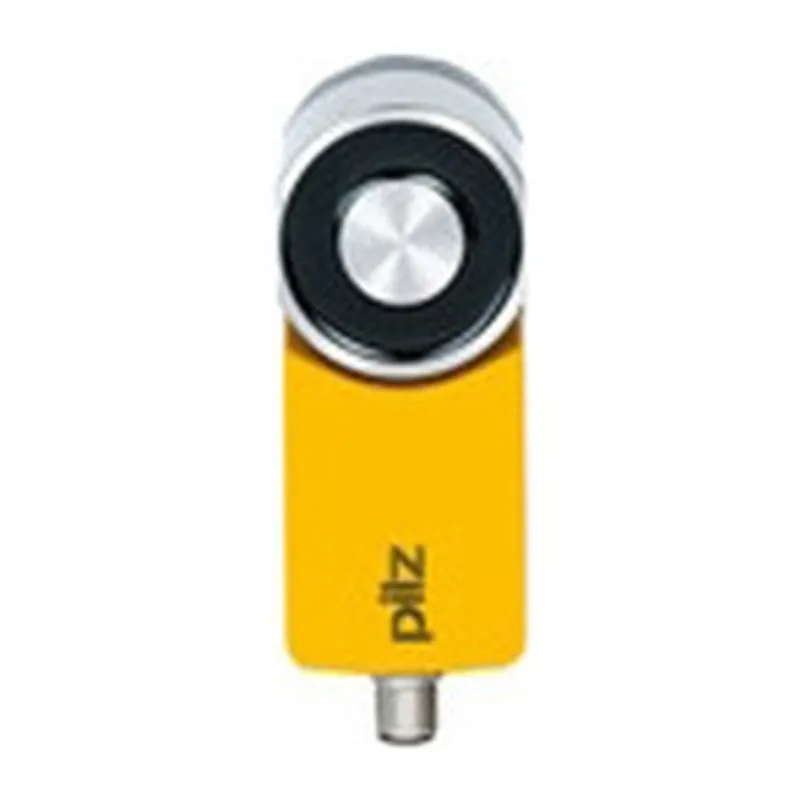

Pilz 570514

PSEN sl-0.5n 2.1 1switch

MPN
570514
EAN
4046548063707
Category
PSENslock
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 570514 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 570514?

Safety switch, with electromagnetic guard locking, fully coded, for safety locking device PSENslock, guard locking for process protection, holding force 500 N, 5-pin M12 male connector, single connection

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)570514
ApprovalCE, UKCA, cULus Listed, FCC, IC, EAC (Eurasian)
Sensor principleTransponder
Coding level to ISO 14119High
Classification to EN 60947-5-3PDDB
Transponder codingfully coded
Suitable for series connectionno
unit typeSensor
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)24
Type of supply voltage U1DC
Power consumption DC4.8

Inputs

Number of inputs1

Semiconductor outputs

Number of OSSD outputs2
Number of sig. outputs0
S/C output short circuit proofYes
Utilisation cat. to EN 60947-1DC-12

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature-25 … 55 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r. h. at 40 °C
EMC to standard ...EN 55011: Class A, EN 60947-5-3, EN 62061
Vibration to standard ...EN 60947-5-2
Acc. shock to standard130g
Overvoltage categoryIII
Pollution degree clear.&creep.3
Protection type, housingIP67

Mechanical data

Holding force magnet on500
Max. vertical offset5 mm
Max. angular offset2.5 deg
Type 1 actuatorPSEN sl-0.5 2.1
Type 2 actuatorPSEN sl-0.5fm 2.1
Sensor can be flush-mountedYes, follow installation guide
Connection typeM12, 5-pin male
Cable linesLiYY 5 x 0.25 mm2
Housing material upper partPBT
Material of base plateAnticorodal, hard anodised
Height dimension122 mm
Width dimension45 mm
Depth dimension44 mm
Net weight570 g
Gross weight630 g

Transponder

Operating frequency122 kHz - 128 kHz

Environment

WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27272603
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC002593
UNSPSC 2539122205
GTIN4046548063707
Volume0 dm3
Harmonized System Code85365019
Quantity per packaging unit1

570514: frequently asked questions

Can I still buy the 570514 now that it is discontinued?

Yes. Pilz has discontinued the 570514, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 570514 be shipped?

570514 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 570514 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 570514 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 570514, subject to availability and destination.

More Pilz parts

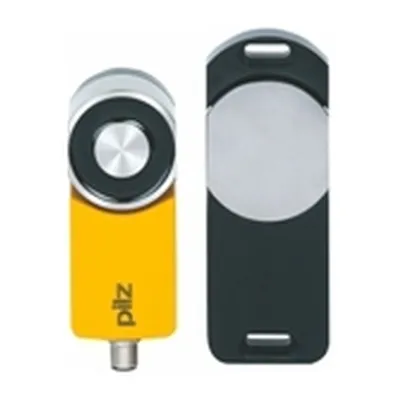

Pilz 570505 – PSEN sl-0.5n 2.2 / PSEN sl-0.5 1unit
