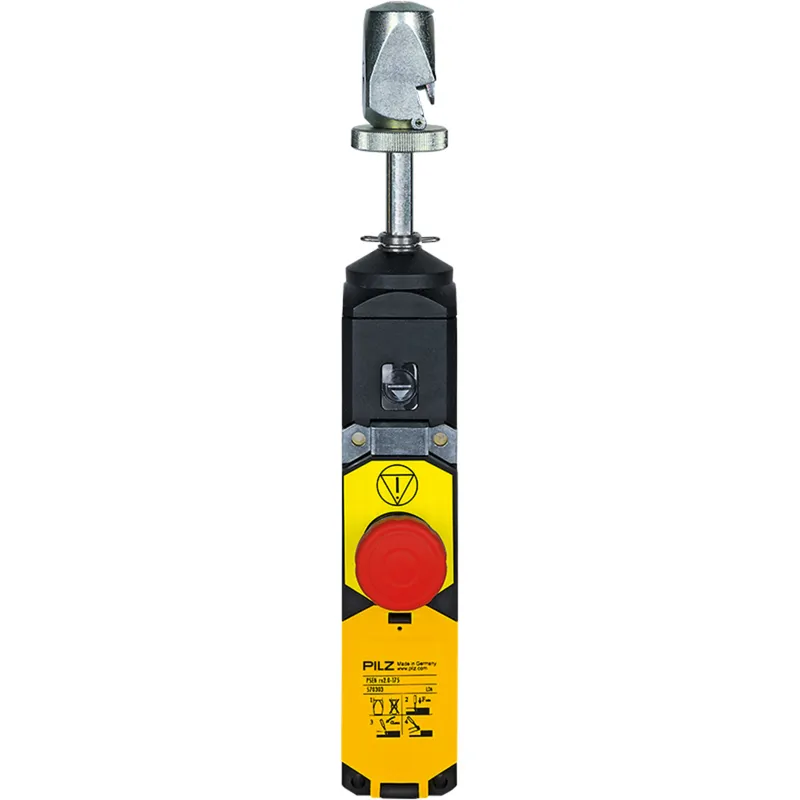

Pilz 570302
PSEN rs2.0-300
- MPN
- 570302
- EAN
- 4046548062724
- Category
- PSENrope
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 570302?
Rope pull switch incl. E-STOP pushbutton, plastic housing, 2xNC+2xNO contacts, 300 N max. spring force.
Specifications
General data
| Product ID (Pilz order number) | 570302 |
| Approval | CE, UKCA, BG, cCSAus, EAC (Eurasian) |
| Lifecycle | Active (current Pilz product) |
Relay outputs
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Voltage AC15 safety cont. | 240 |
| Max. current AC15 safety cont. | 3 |
Environmental data
| Ambient temperature | -25 … 70 °C |
| Protection type, housing | IP67 |
Mechanical data
| Housing material lower section | PA |
| Housing material upper part | PA |
| Material actuator | Zn die cast |
| Connection terminal | Cage clamp terminal |
| Height dimension | 76.8 mm |
| Width dimension | 294 mm |
| Depth dimension | 42.5 mm |
| Net weight | 680 g |
| Gross weight | 775 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6a, 6b |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27270607 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC002033 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548062724 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365080 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
570302: frequently asked questions
When can 570302 be shipped?
570302 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 570302 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 570302 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 570302, subject to availability and destination.
