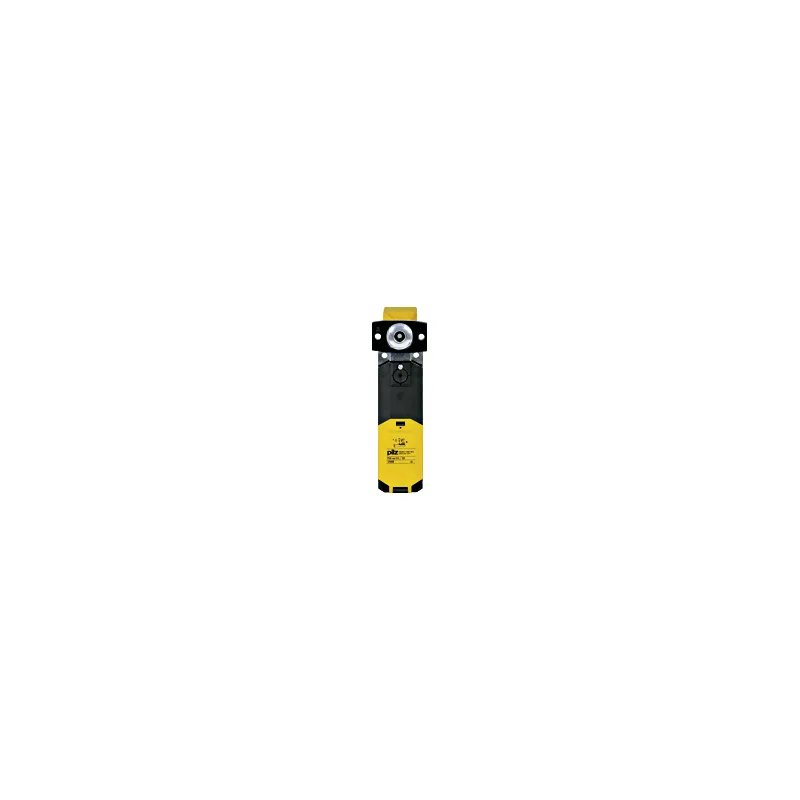

Pilz 570008
PSEN me1.21S / 1AR
- MPN
- 570008
- EAN
- 4046548065732
- Category
- PSENmech with guard locking
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 570008?
Mechanical safety guard locking device, with radius actuator, interlock principle: Spring force 1500 N, contacts: 1 N/O, 3 N/C, supply voltage 110 - 230 V AC.
Specifications
General data
| Product ID (Pilz order number) | 570008 |
| Approval | CE, CCC, UKCA, BG, cCSAus, EAC (Eurasian) |
| unit type | Unit |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 110 |
| Type of supply voltage U1 | AC |
| Power consumption AC | 8 |
| Supply voltage U2 | 230 |
| Type of supply voltage U2 | AC |
Relay outputs
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Voltage AC15 safety cont. | 230 |
| Max. current AC15 safety cont. | 2.5 |
Environmental data
| Ambient temperature | -25 … 70 °C |
| Protection type, housing | IP67 |
Mechanical data
| Holding force | 1500 |
| Connection terminal | Spring-loaded terminal |
| Height dimension | 184 mm |
| Width dimension | 42.5 mm |
| Depth dimension | 51 mm |
| Net weight | 337 g |
| Gross weight | 515 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272603 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002593 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548065732 |
| Volume | 1.330 dm3 |
| Harmonized System Code | 85365080 |
| Quantity per packaging unit | 1 |
