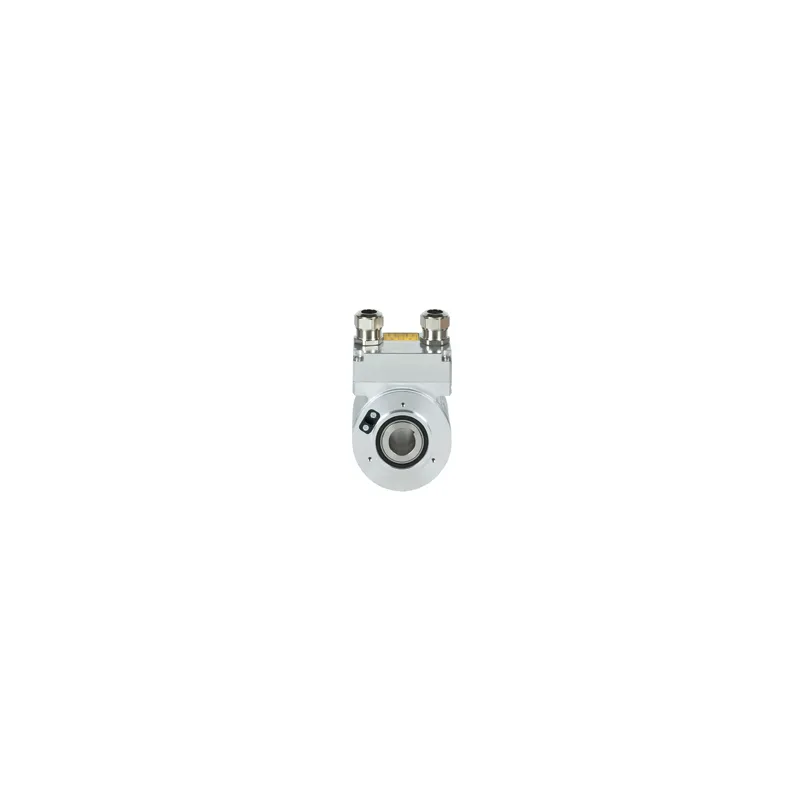

Pilz 544011
PSEN enc s1 eCAM
- MPN
- 544011
- EAN
- 4046548067415
- Category
- PSENenco - rotary encoder
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 544011?
Absolute encoder, single-turn, with two redundant SSI interfaces, continuous hollow shaft 20 mm.
Specifications
General data
| Product ID (Pilz order number) | 544011 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 V |
| Power consumption DC | 3.6 W |
Environmental data
| Ambient temperature | -20 … 70 °C |
| Max. relative humidity | 98 % |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 60g |
| Protection type standard | EN 60529 |
| Protection type, housing | IP54 |
Mechanical data
| Connection type | Terminals |
| Housing material | Aluminium |
| Height dimension | 125 mm |
| Width dimension | 75 mm |
| Depth dimension | 75 mm |
| Net weight | 1000 g |
| Gross weight | 1400 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27270502 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001486 |
| UNSPSC 25 | 39121527 |
| GTIN | 4046548067415 |
| Volume | 0 dm3 |
| Harmonized System Code | 90318020 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
544011: frequently asked questions
When can 544011 be shipped?
544011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 544011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 544011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 544011, subject to availability and destination.
