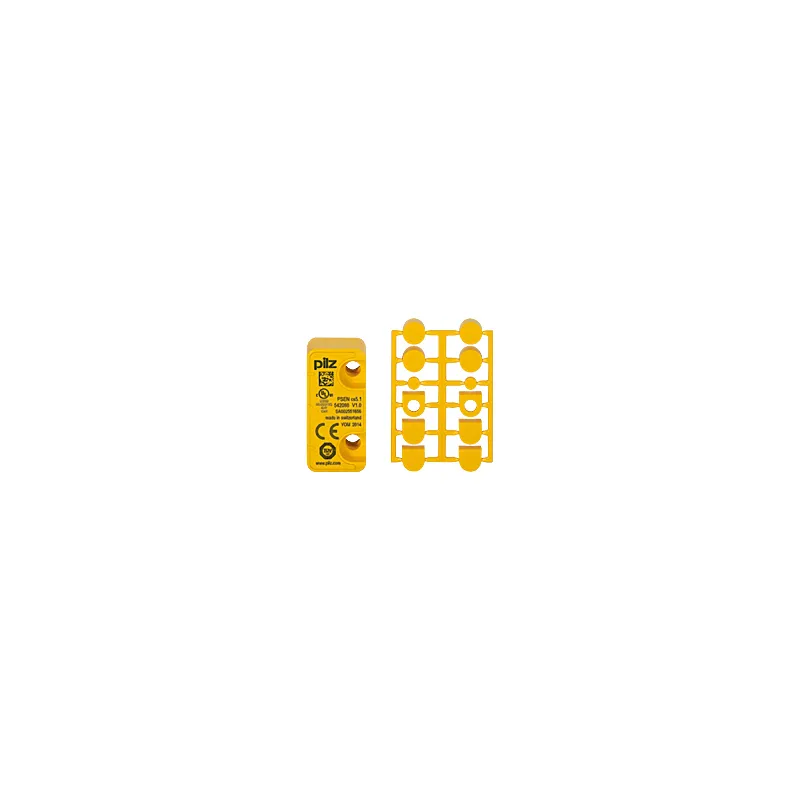

Pilz 542180
PSEN cs6.1 1actuator
- MPN
- 542180
- EAN
- 4046548077391
- Category
- PSENcode - slim design
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 542180?
RFiD actuator for safety switch PSEN cs6.x, IP67, PU = 1 piece.
Specifications
General data
| Product ID (Pilz order number) | 542180 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian), ECOLAB |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | hoch |
| Transponder coding | vollcodiert |
| unit type | Betätiger |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 °C |
| Max. ambient temp. at Hmax | +60 °C |
| Max. ambient temp. at 2000 m | +70 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30 |
| Humidity rating | 93 % r. F. bei 40 °C |
| Perm. operating height ASL | 4000 m |
| EMC to standard ... | EN 60947-5-3 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Protection type, housing | IP66, IP67 |
Mechanical data
| Housing material upper part | PBT |
| Height dimension | 18 mm |
| Width dimension | 37 mm |
| Depth dimension | 13 mm |
| Net weight | 10 g |
| Gross weight | 15 g |
Transponder
| Operating frequency | 122 kHz - 128 kHz |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274002 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001487 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548077391 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
542180: frequently asked questions
When can 542180 be shipped?
542180 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 542180 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 542180 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 542180, subject to availability and destination.
