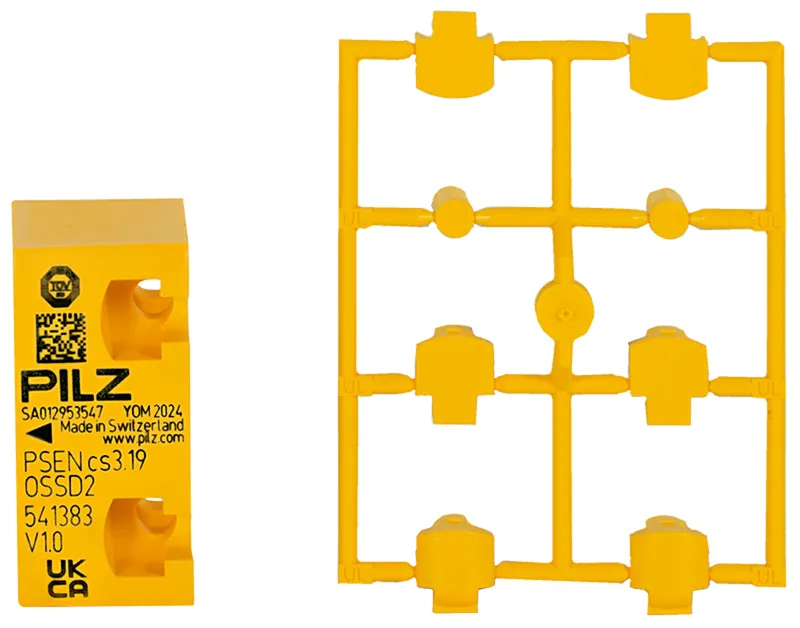

Pilz 541383
PSEN cs3.19-OSSD2 1actuator
- MPN
- 541383
- EAN
- 4046548070781
- Category
- PSENcode - compact design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 541383?
RFiD actuator for safety switch PSEN cs3.19, IP67, PU = 1 piece, OSSD2.
Specifications
General data
| Product ID (Pilz order number) | 541383 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | gering |
| Transponder coding | codiert |
| unit type | Betätiger |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 °C |
| Max. ambient temp. at 2000 m | +55 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. F. bei 40 °C |
| Perm. operating height ASL | 4000 m |
| EMC to standard ... | EN 60947-5-3 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Protection type, housing | IP6K9K |
Mechanical data
| Product material | PBT |
| Height dimension | 37 mm |
| Width dimension | 18 mm |
| Depth dimension | 18 mm |
| Net weight | 15 g |
| Gross weight | 35 g |
Transponder
| Operating frequency | 122 kHz - 128 kHz |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274002 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001487 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548070781 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (8)
- Self Declaration (CQC) CCC_Declaration-of-exemption
- Certificate (UL) NRNT.E153882
- Type examination certificate (TÜV) M6A-020132-0191-R02
- Certificate (EAC) RU-C-DE-HB-B-03003-23
- Certificate (UL) E153882
- Type examination certificate (KOSHA) 2013-241-(17-22)
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
