Pilz 533171
PSEN cable M12-5sf VA 10m
- MPN
- 533171
- EAN
- 4046548089585
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

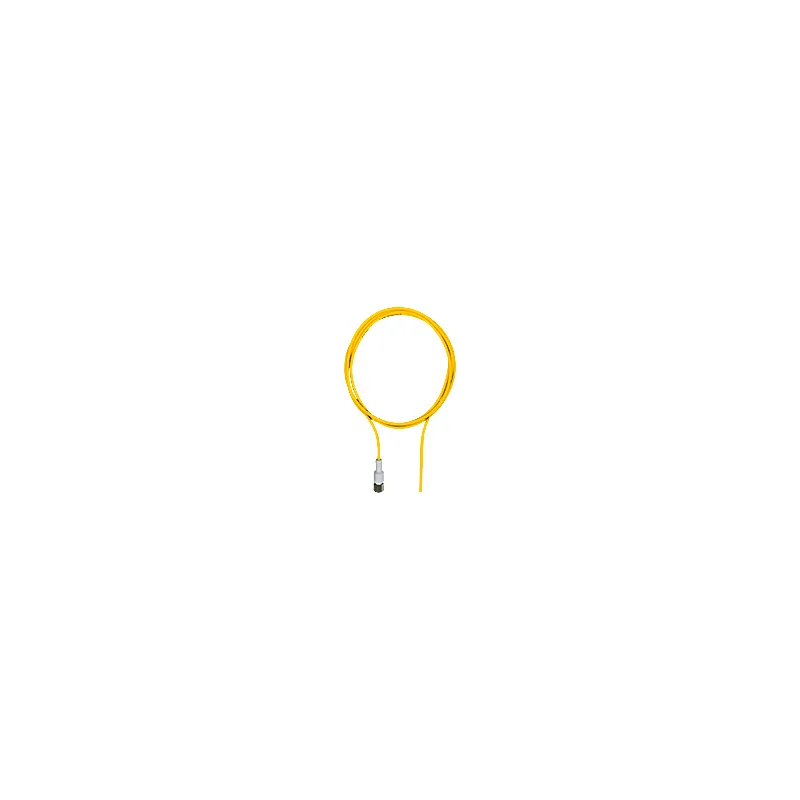

What is the Pilz 533171?
Connection cable, PVC (UL105°C), yellow RAL1003, ECOLAB, suitable fordrag chains, 5-pin, socket straight M12, on open line end, A-coded, threaded ring: Stainless steel 1.4404, cable length: 10m
Specifications
General data
| Product ID (Pilz order number) | 533171 |
| Approval | CE, UKCA, cULus Listed, ECOLAB |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 4 |
| Typ. conductor resistance K1 | 57 Ohm/km |
| Insulation resistance cable K1 | 200 MOhm x km |
| Specific conductor capacity K1 | 79.9 pF/m |
Environmental data
| Ambient temperature | -40 … 105 °C |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP69K |
Mechanical data
| Connector type 1 | 5-pin M12 female connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Matl threaded ring conn 1 | 1.4404 stainless steel |
| Contact surfaces material 1 | Au |
| Seal material | EPDM |
| Material of sockets | CuSn |
| Cable material K1 | Cu |
| Insulation material cable K1 | PVC Y17(105°) |
| Length cable | 10 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Housing colour | Light grey |
| Material of cable insulation 1 | PVC YM3(105°) |
| Trailing capability of cable 1 | yes |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 5.4 |
| Conductor cross section | 0.34 |
| Cable cross section AWG K1 | 22 |
| Stranding K1 | Cores in concentric layers |
| Shielding K1 | no |
| Number of conductors | 5 |
| Approvals for cable K1 | UL AWM-Style 2517 VW1 |
| Halogen-free | no |
| Oil resistance | resistant |
| Flame resistance | VDE 0482-265-2-2, IEC 60332-2, EN 50265-2-2, UL VW1 |
| Torque interlocking screw | Approx. 50 cNM |
| Net weight | 433 g |
| Gross weight | 438 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060311 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548089585 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
