Pilz 506344
PSEN ma1.4-51M12/8-0.15m/PSENma1.4-03/1u
- MPN
- 506344
- EAN
- 4046548067880
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 506344?

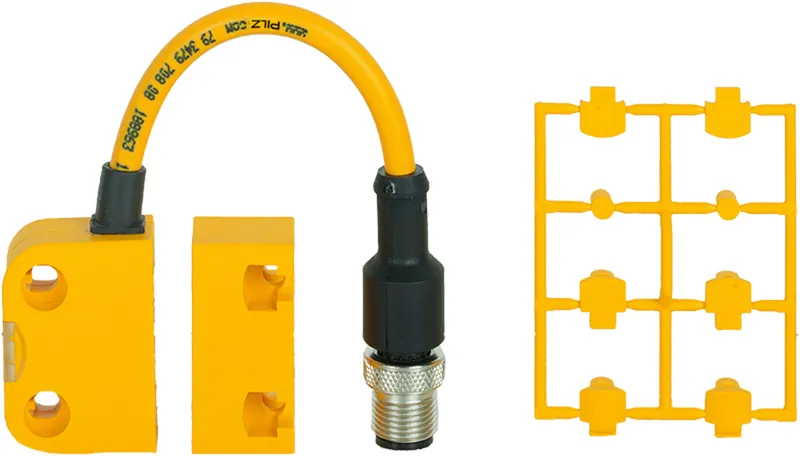

Magnetic safety switch 2 n/o, 1 auxiliary contact n/o, 8-pin M12 male connector, with 0.15 m cable, square design, LED, IP67, operating distance 3 mm, height design 18 mm, PU = 1 sensor withactuator.
Specifications
General data
| Product ID (Pilz order number) | 506344 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Sensor principle | magnetic |
| Coding level to ISO 14119 | Low |
| Classification to EN 60947-5-3 | PDDB |
| Suitable for series connection | no |
| unit type | Unit |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Switching voltage | 24 |
Environmental data
| Ambient temperature | -10 °C |
| Max. ambient temp. at 2000 m | +55 °C |
| Climatic suitability standard | IEC 60068-2-30 |
| Humidity rating | 93 % r. h. at 40 °C |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 60947-5-3 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP65, IP67 |
Mechanical data
| Type 1 actuator | PSEN ma1.4-03mm |
| Sensor can be flush-mounted | Yes, follow installation guide |
| Connection type | M12, 8-pin male |
| Cable lines | LiY11Y 8 x 0.14 mm2 |
| Housing material upper part | PBT |
| Height dimension | 37 mm |
| Width dimension | 26.4 mm |
| Depth dimension | 18 mm |
| Net weight | 51 g |
| Gross weight | 90 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274401 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002544 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548067880 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
- CAD 2D drawing (DXF Autodesk Drawing Interchange Format)
- CAD 2D drawing (Portable Document Format (Adobe Acrobat))
- CAD 2D drawing (Portable Document Format (Adobe Acrobat))
- CAD 2D drawing (DXF Autodesk Drawing Interchange Format)
- CAD 3D model (STEP - Product Model Data)
- CAD 3D model (STEP - Product Model Data)
- CAD 3D model (IGES - Initial Graphics Exchange Spec.)
- CAD 3D model (IGES - Initial Graphics Exchange Spec.)
Certificates (7)
506344: frequently asked questions
When can 506344 be shipped?
506344 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 506344 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 506344 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 506344, subject to availability and destination.
