Pilz 506247
PSEN ma1.3-22M12/8/PSENma1.3-08/IX/VA/1U
- MPN
- 506247
- EAN
- 4046548084061
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 506247?

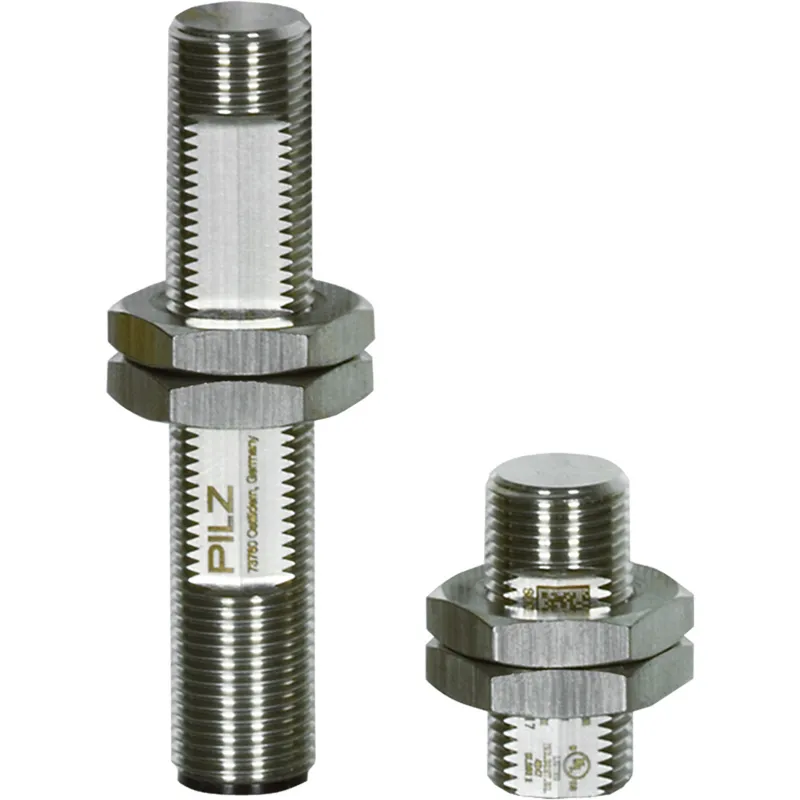

Safety sensor for position monitoring of moveable guards in accordance with EN 60947-5-3, 2 n/o, 1 auxiliary contact n/o,8-pin M12 male connector, for applications up to SIL 3/PL e/Cat. 4,cylindrical design M12, IP69, PU = 1 sensor with M12 actuator, operating distance 8mm for applications with PSEN ix1, stainless steel housing.
Specifications
General data
| Product ID (Pilz order number) | 506247 |
| Approval | CE, UL/cUL, UKCA, TÜV, ECOLAB, EAC (Eurasian) |
| Sensor principle | magnetic |
| Coding level to ISO 14119 | Low |
| Classification to EN 60947-5-3 | PDDB |
| Suitable for series connection | yes |
| unit type | Unit |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Switching voltage | 24 |
| Utilisation cat. reed contacts | DC-12 |
Environmental data
| Ambient temperature | -25 °C |
| Ambient temp. with UL | -25 - 105 °C |
| Climatic suitability standard | IEC 60068-2-30 |
| Humidity rating | 90 % r. h. at 40 °C |
| Perm. operating height ASL | 4000 m |
| EMC to standard ... | EN 60947-5-3 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP69, IP67 |
Mechanical data
| Type 1 actuator | PSEN ma1.3-08 VA |
| Sensor can be flush-mounted | Yes, follow installation guide |
| Connection type | M12, 8-pin male |
| Housing material upper part | Stainless steel 1.4401 |
| Height dimension | 12 mm |
| Width dimension | 12 mm |
| Depth dimension | 61 mm |
| Net weight | 30 g |
| Gross weight | 40 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274401 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002544 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548084061 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
- CAD 2D drawing (Portable Document Format (Adobe Acrobat))
- CAD 2D drawing (DXF Autodesk Drawing Interchange Format)
- CAD 2D drawing (DXF Autodesk Drawing Interchange Format)
- CAD 2D drawing (Portable Document Format (Adobe Acrobat))
- CAD 3D model (IGES - Initial Graphics Exchange Spec.)
- CAD 3D model (STEP - Product Model Data)
- CAD 3D model (IGES - Initial Graphics Exchange Spec.)
- CAD 3D model (STEP - Product Model Data)
506247: frequently asked questions
When can 506247 be shipped?
506247 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 506247 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 506247 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 506247, subject to availability and destination.
