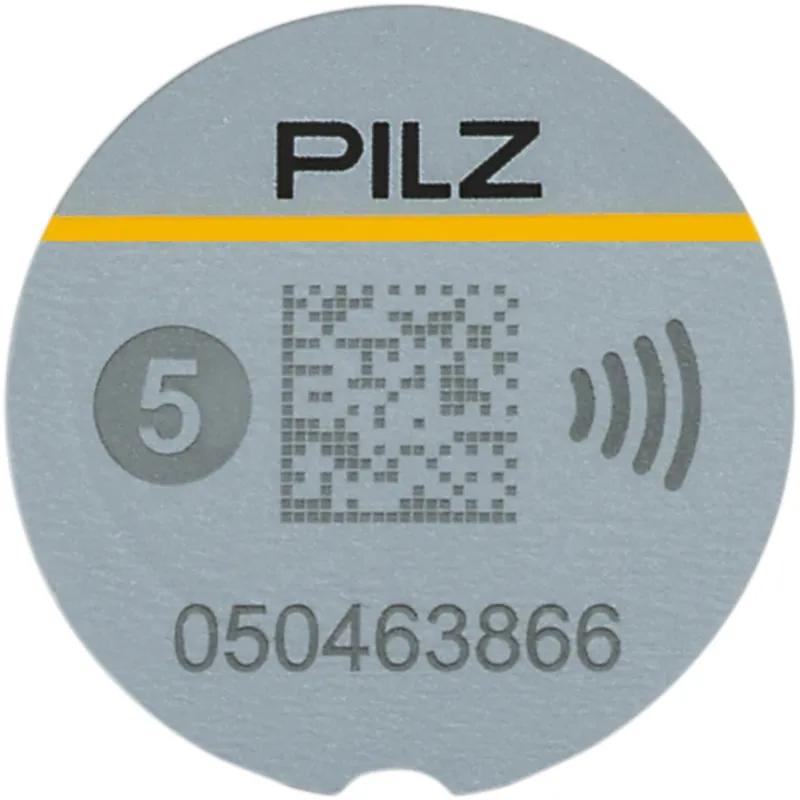

Pilz 402345

PITreader sticker ye 5

MPN: 402345
EAN: 4046548105322
Category: PITmode

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 402345?

Transponder sticker for authentication system PITreader Card, authorisation for operating modes 1, 2, 3, 4 and 5 Colour: yellow Material: Plastic

Specifications

General data

Product ID (Pilz order number)	402345
Approval	CE, UKCA
Sensor principle	Transponder
Lifecycle	Active (current Pilz product)

Environmental data

Ambient temperature	-25 … 50 °C
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Protection type, housing	IP68

Mechanical data

Mounting position	any
Housing material	PVC
Depth dimension	0.8 mm
Net weight	1 g
Gross weight	2 g

Transponder

Transponder energy supply	Passive (battery-free)
Operating frequency	13.56 MHz

Environment

WEEE classification (08/2018)

0 not relevant

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27280402
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002996
UNSPSC 25	39122205
GTIN	4046548105322
Volume	0 dm3
Harmonized System Code	85389099
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Operating Manual: Operat.Manual PITreaderPDF · 4.7 MB

Certificates (4)
