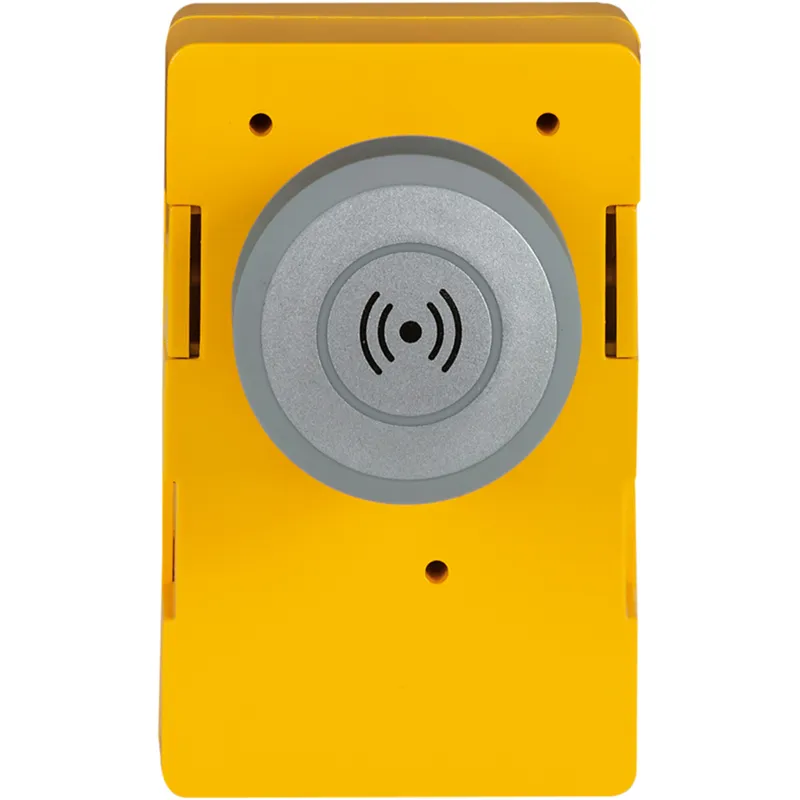

Pilz 402320

PITreader card unit

MPN: 402320
EAN: 4046548105056
Category: PITmode

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the Pilz 402320?

PITreader card unit. RFID authentication system for cards, sticker / key. Contents: Base unit, connector [402307], PITreader card adapter.

Specifications

General data

Product ID (Pilz order number)	402320
Approval	CE, UKCA, cULus Listed, FCC, IC
Sensor principle	Transponder
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC
Type of power supply for U1	SELV/PELV
Power consumption DC	4
Device circuit breaker U1	4 A, Autom 24 VDC, Char.B/C

Inputs

Galv. isolation input

Semiconductor outputs

Number of semicond. outputs	1
Galv. isolation of S/C outputs	No
S/C output short circuit proof	Yes

Ethernet interface

Ethernet IP addr. factory set	192.168.0.12
Connector type ETHERNET int.	RJ45
Ethernet transmission rate	10/100 Mbit/s
Number of Ethernet interfaces	1

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	-30 … 55 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Perm. operating height ASL	2000 m
EMC to standard ...	EN 301489-1 V2.1.1
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Protection type standard	EN 60529
Protection type, housing	IP20

Mechanical data

Mounting position	any
Housing material lower section	PC
Housing material front plate	PC
Connection terminal	Spring-loaded terminal, plugin
Terminal style	plug-in
Height dimension	49 mm
Width dimension	72 mm
Depth dimension	45 mm
Net weight	62 g
Gross weight	115 g

Transponder

Transponder energy supply	Passive (battery-free)
Operating frequency	13.24 - 13.88 MHz

Environment

WEEE classification (08/2018)

6 small IT-/communic. device

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27280402
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002998
UNSPSC 25	39122205
GTIN	4046548105056
Volume	0 dm3
Harmonized System Code	85389099
Quantity per packaging unit	1
