Pilz 402306
PIT m4SEU terminal set spring load
- MPN
- 402306
- EAN
- 4046548093575
- Category
- PITmode
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 402306?

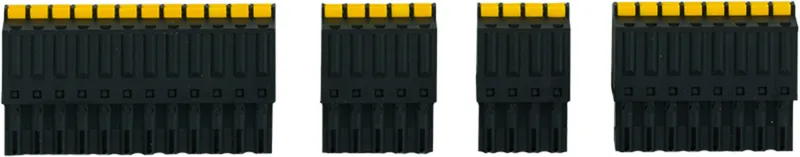

Connector set for safe evaluation device for operating mode selection:PIT m4SEU [402250]. Comprising 1 x 4-pin, 1 x 5-pin, 1 x 8-pin and 1 x 12- pin female connector strip in spring force version, straight cableoutlet.
Specifications
General data
| Product ID (Pilz order number) | 402306 |
| Approval | CE |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | -20 … 60 °C |
Mechanical data
| Net weight | 26 g |
| Gross weight | 28 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371292 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC002024 |
| UNSPSC 25 | 46211501 |
| GTIN | 4046548093575 |
| Volume | 0.113 dm3 |
| Harmonized System Code | 85366990 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
CAD & dimension drawings
402306: frequently asked questions
When can 402306 be shipped?
402306 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 402306 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 402306 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 402306, subject to availability and destination.
